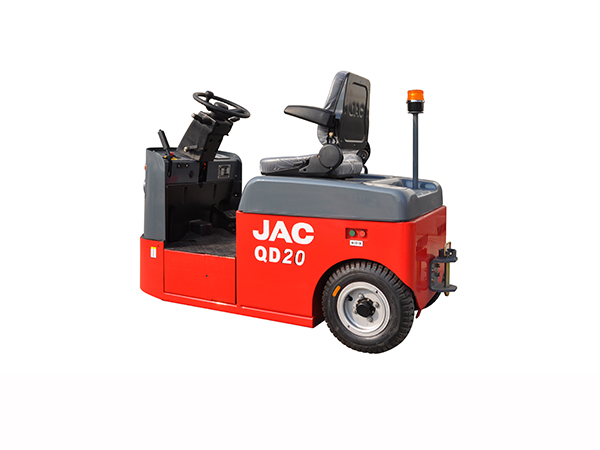

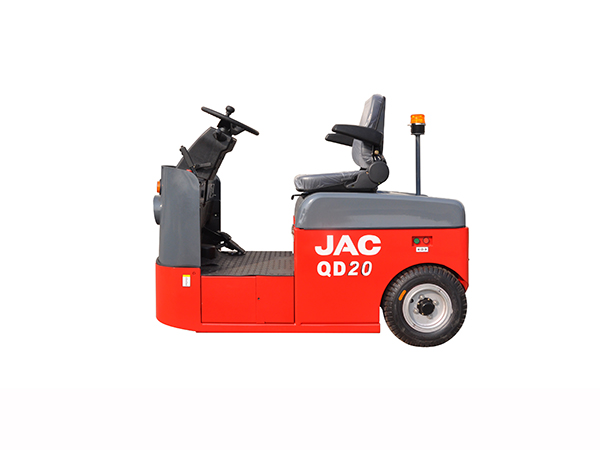

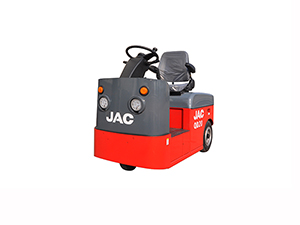

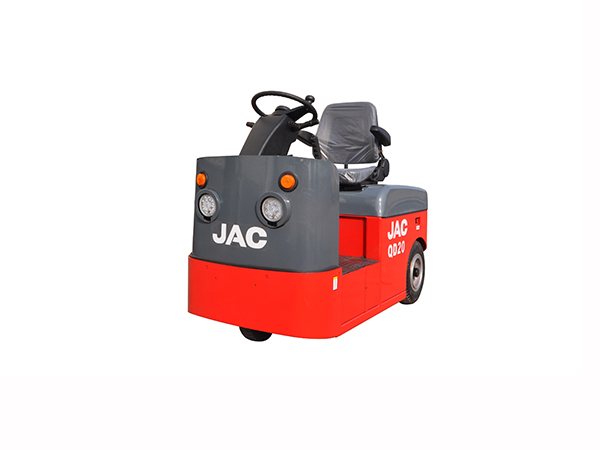

Electric Tow Tractor
Features
1. The material handling device is designed with handrail for commercial vehicle and leathery soft backrest. The upscale design improves the comfort during operation and relieves the fatigue of the operator.
2. Standard warning light increases the safety of the electric tow tractor.
3. The height and diameter of the adjustable drawbar pin can be customized based on customer demand.
4. 24V-280AH storage battery
5. The integrated type pedal pad has high elasticity, good slip resistance, and nice appearance.
6. The electric tow tractor comes with aluminum control arm. The reasonable design enables convenient operation and relieves the fatigue of worker.
7. Integrated type operating handle makes for convenient and easy control on the industrial tractor.
8. CURTIS AC control system
| Model | Unit | QD20S1 | QD30S1 | QD45S1 | QD60S1 | QD80S1 |
| Power type | Battery | |||||
| Drive type | Seat type | |||||
| Rated load | kg | 2000 | 3000 | 4500 | 6000 | 8000 |
| Drawbar height | mm | 303 | ||||
| Weight with battery | kg | 740 | 780 | 900 | 980 | 1080 |
| Overall length | mm | 1685 | 1845 | 1895 | ||
| Overall width | mm | 800 | ||||
| Overall height | mm | 1236 | ||||
| Minimum turning radius | mm | 1600 | 1760 | 1740 | ||
| Minimum right angle aisle width | mm | 1800 | 1960 | 1950 | ||
| Maximum travel speed at full load | km/h | 6 | ||||
| Maximum travel speed at no load | 13 | |||||
| Tire type (front/rear) | Pneumatic | |||||
| Front wheel | Φ294×99 | |||||
| Rear wheel | Φ415×112 | |||||
| Tyre quantity | 1x /2 | 2x /2 | ||||
| Battery voltage/capacity | V/Ah | 48/165 | 48/195 | 48/220 | 48/275 | 48/350 |
| Travel motor | kW | 1.95 | 4.28 | 8 | ||
Information Related to Electric Tow Tractor
HS Code: 8427109000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
