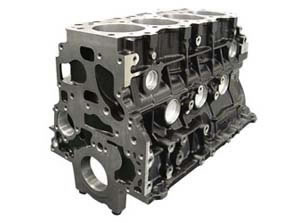

Petrol Engine
A petrol engine, also known as a gasoline engine, is an internal combustion engine designed to run on petrol and similar volatile fuels. Unlike a diesel engine, it uses spark plugs to initiate the combustion process.
As a Chinese petrol engine supplier, we mainly provide customers with Nissan petrol engines and GM gasoline engines. Our 4-cylinder engines and 6-cylinder engines are reliable, powerful and environmentally friendly, which meet Europe II or Ⅲ emission standards. Please find more information regarding our petrol engines through the following parameter tables.
1-3.5T Petrol Engine Specifications
| Model | Nissan K21 | Nissan K25 | GM 2.4 | GM 3.0 | JAC 4DA1 |
| Bore*Stroke (mm) | 89*83 | 89*100 | 87.5*100 | 101.60*91.44 | 93*102 |
| Cylinder Number | 4 | 4 | 4 | 4 | 4 |
| Combustion System | CARB Carburetor | CARB Carburetor | Electronic Ignition | Electronic Ignition | Electronic Ignition |
| Air Suction Type | Natural aspiration | Natural aspiration | Natural aspiration | Natural aspiration | Natural aspiration |
| Displacement(L) | 2.055 | 2.488 | 2.405 | 3.0 | 2.237 |
| Rated Horsepower(kw/r/min) | 31.2/2250 | 37.4/2300 | 43/2500 | 51/.3000 | 44/2570 |
| Rated Torque (N.m/r/min) | 143.7/1600 | 176.5/1600 | 134/1300 | 163/1600 | 165/2570 |
| Emission Level | Euro II/Ⅲ | Euro II/Ⅲ | Euro Ⅲ | Euro Ⅲ | Europe Ⅲ |
| Net Weight(kg) | / | / | 112 | 165 | 147 |
| Size(mm) | 718.6×572×745.5 | 718.6×572×745.5 | 650*426*603 | 650*426*603 | 704*512*754 |
4-7T Petrol Engine Specifications
| Model | GM3.0 | GM 4.3 |
| Bore*Stroke (mm) | 101.60*91.44 | 101.60*88.39 |
| Cylinder Number | 4 | 6 |
| Combustion System | Electronic Ignition | Electronic Ignition |
| Air Inlet Type | Natural aspiration | Natural aspiration |
| Displacement(L) | 3.0 | 4.3 |
| Rated Horsepower(kw/r/min) | 51/.3000 | 86/3200 |
| Rated Torque (N.m/r/min) | 163/1600 | 284/3000 |
| Emission Level | Europe Ⅲ | Europe Ⅲ |
| Net Weight(kg) | 165 | 197 |
| Size(mm) | 650*426*603 | 622*510*678 |
Apart from petrol engines, we at JAC also provide electric forklifts, electric pallet trucks, electric stackers, etc. All our JAC forklift trucks are CE certified, and some engines of our products are EPA certified. As a result of their high quality and low prices, our products are very popular with customers in many countries, such as Australia, Portugal, Venezuela, Algeria, Afghanistan, and so on.
If you are interest in our products, please feel free to contact us. We are ready to serve you.
