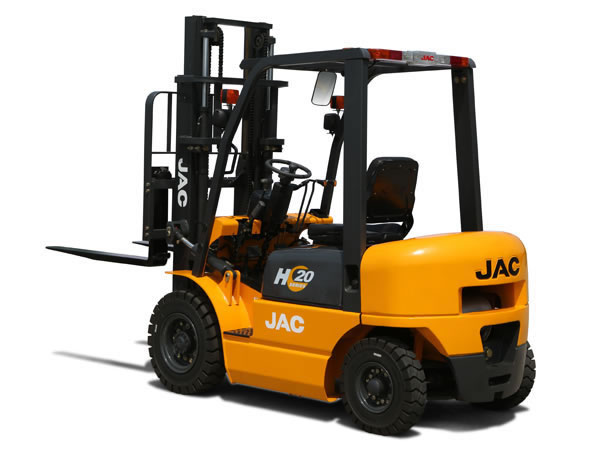

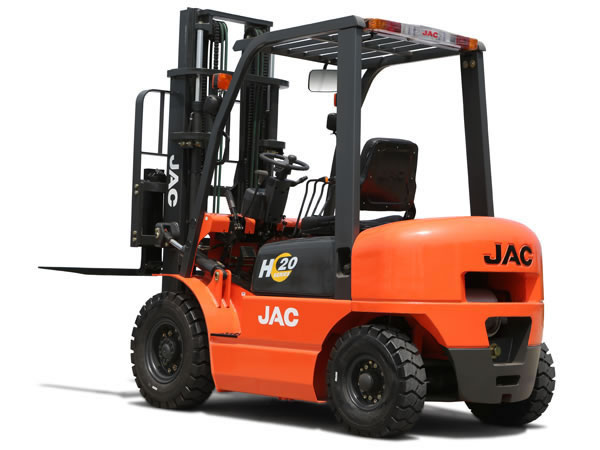

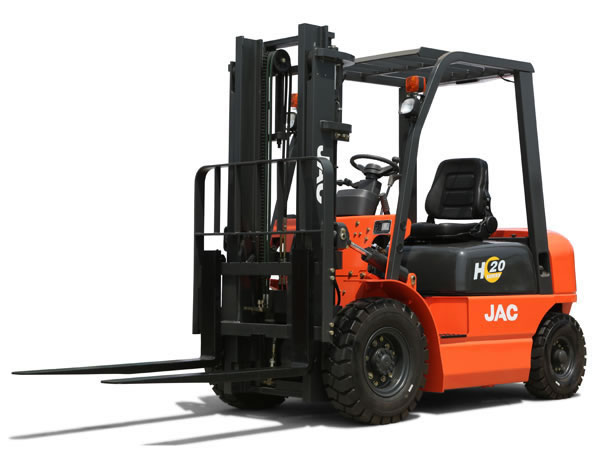

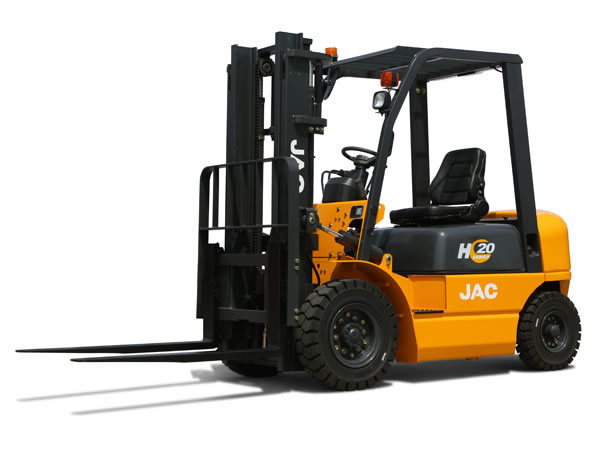

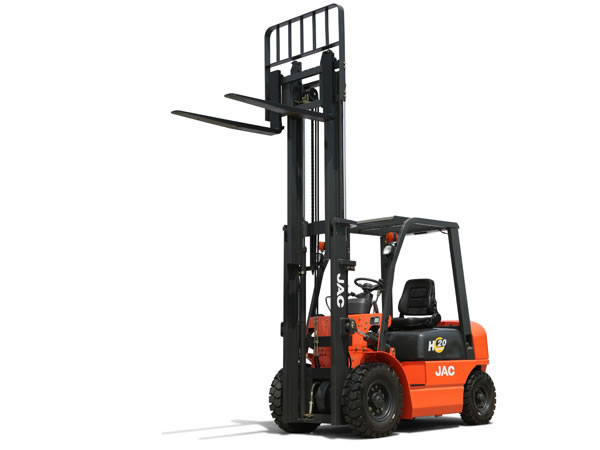

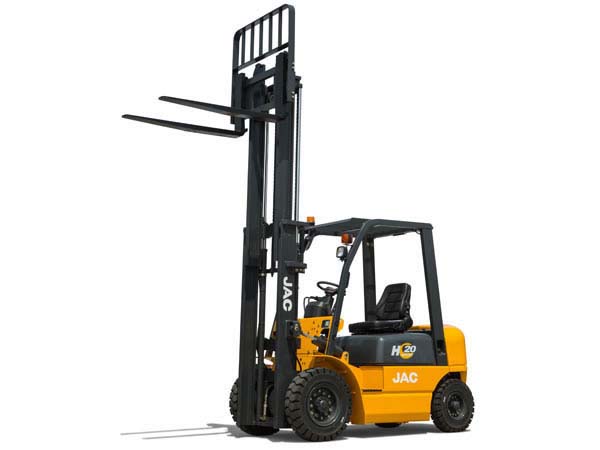

Diesel Forklift (2-2.5T Forklift Truck, H Series)
- Home
- Products
- Diesel Forklift
- Diesel Forklift (2-2.5T Forklift Truck, H Series)
| Model | CPCD20H | CPCD25H | ||
| Features | Power type | Diesel | ||
| Rated load（kg） | 2000 | 2500 | ||
| Load center distance（mm） | 500 | |||
| Lift height（mm） | 3000 | |||
| Free lift height（mm） | 140 | |||
| Fork size | L×W×T（mm） | 1070×122×40 | ||
| Mast tilt angle | Front/Rear | 6°/12° | ||
| Minimum turning radius（mm） | 2170 | 2230 | ||
| Minimum right angle stacking aisle width（mm） | 3635 | 3695 | ||
| Minimum right angle aisle width（mm） | 2370 | 2430 | ||
| Minimum ground clearance | Frame center(no load)（mm） | 115 | ||
| Mast Bottom（no load）（mm） | 110 | |||
| Height of overhead guard（mm） | 2070 | |||
| Overhang (FR)（mm） | 465 | |||
| Performance | Maximum travel speed | Full load（km/h） | 18 | |
| No load（km/h） | 18 | |||
| Maximum lift speed | Full load（mm/s） | 500 | ||
| No load（mm/s） | 700 | |||
| Maximum drawbar pull | Full load（KN） | 11.7 | 11.4 | |
| Maximum gradeability（%） | 20 | 18 | ||
| Dimensions | Overall length | Without forks（mm） | 2485 | 2560 |
| Overall width（mm） | 1160 | |||
| Mast height at maximum lift (with backrest)（mm） | 4030 | |||
| Mast lowered height（mm） | 1995 | |||
| Chassis | Tires | Front wheel | 7.00-12-12PR | |
| Rear wheel | 6.00-9-10PR | |||
| Wheelbase（mm） | 1600 | |||
| Tread | Front wheel/rear wheel（mm） | 970/970 | ||
| Self weight | Without load（Kg） | 3300 | 3660 | |
| Drive | Battery | Voltage/capacity（V/Ah） | 12/80 | |
| Engine | Model | 4D27G31 Xinchang | ||
| Rated output（kw/r.p.m） | 36.8/2500 | |||
| Rated torque（Nm/r.p.m） | 156/1700-1900 | |||
| Bore x stroke（mm） | 90×105 | |||
| Number of cylinders | 4 | |||
| Displacement（L） | 2.67 | |||
| Fuel tank capacity（L） | 55 | |||
| Transmissions (FWD/RWD) | 1/1 manual shift | |||
| Operating pressure（Mpa） | 18.5 | |||
| Supplement | Tire type (FR/RR) | Pneumatic | ||
| Number of wheels (FR/RR)（pcs） | 2/2 | |||
| Lowering speed (full load)（mm/s） | 450 | |||
| Lowering speed (no load)（mm/s） | 500 | |||
| Axle load distribution (full load) (FR/RR)（kg） | 4770/530 | 5544/616 | ||
| Axle load distribution (no load) (FR/RR)（kg） | 1320/1980 | 1464/2196 | ||
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
Selling Point

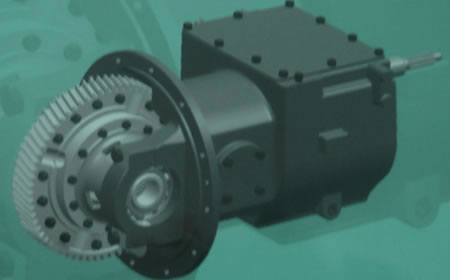

1. The H series diesel forklift comes with the load capacity from 2 tons to 2.5 tons. It is equipped with first class drive system and high quality gearbox.

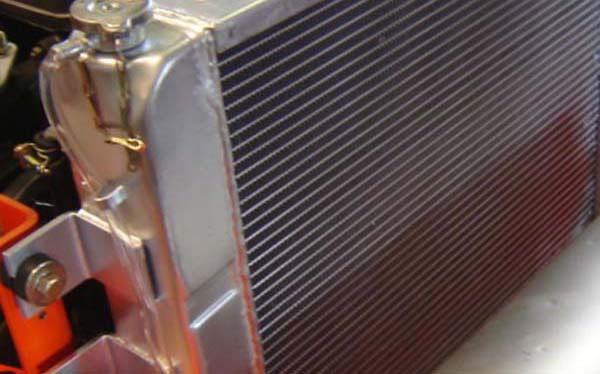

2. For optimal heat dissipation effect, we particularly manufacture the heavy-duty lift truck with aluminium radiator.
3. The air intake system of the diesel forklift is installed at high level to prevent the dust from entering the engine, so the lifespan of the engine is extended, accordingly.

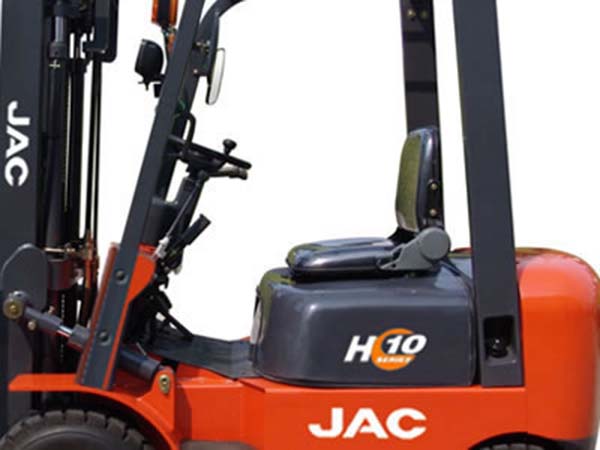

4. Thanks to the adjustable seat and steering wheel, the working space can be enlarged. The comfortable environment brings worker a good mood.

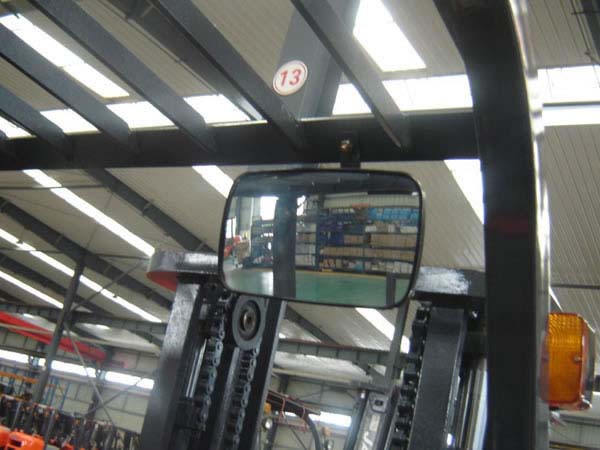

5. Wide field of view

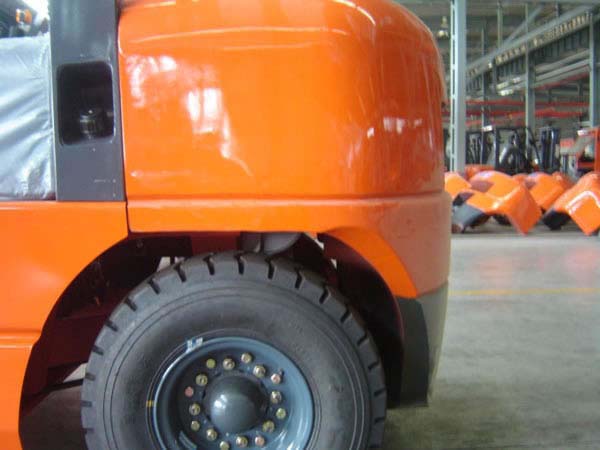

6. Streamlined design for the balance weight of the industrial forklift truck makes for attractive and unique appearance of our product.

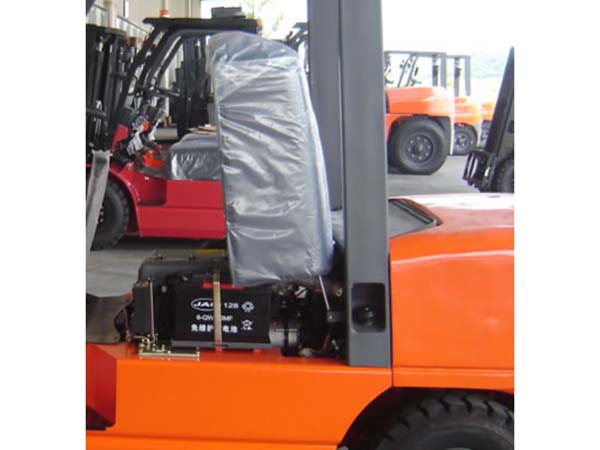

7. Big opening angle of the hood makes the maintenance of the fork truck easier.
