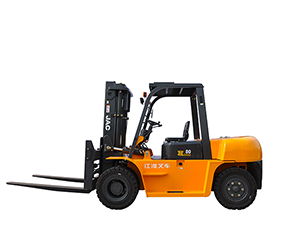

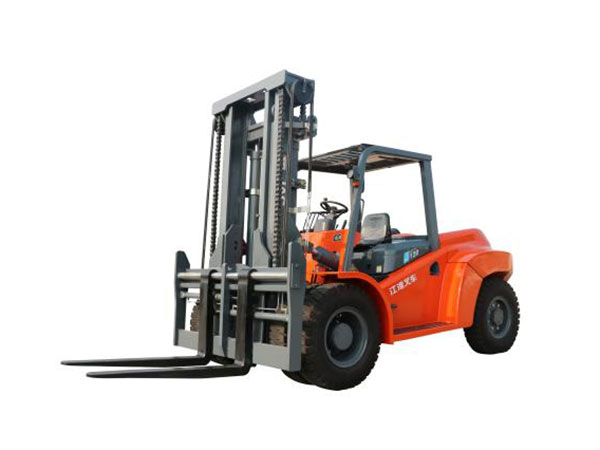

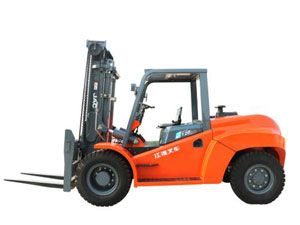

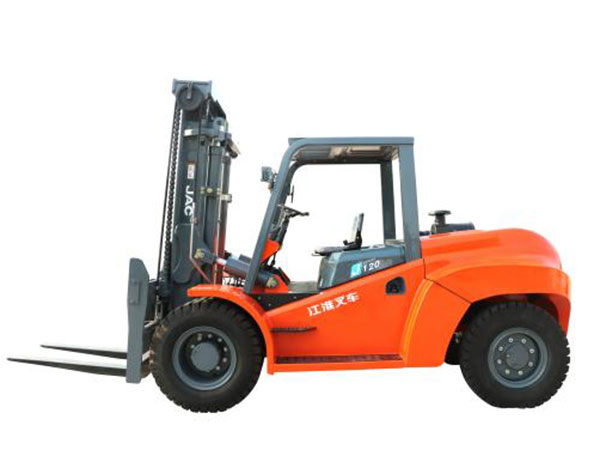

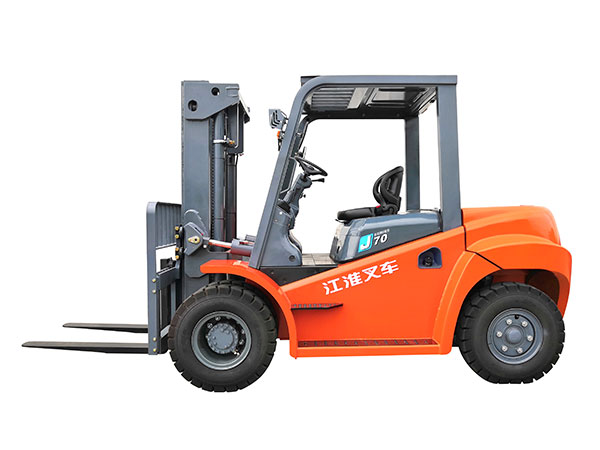

Diesel Forklift (5-12T Internal Combustion Counterweight Forklift Truck, J Series)
Inquiry Form
Technical Parameters of the Internal Combustion Counterbalance Forklift
Model CPCD50J CPCD60J CPCD70J CPCD80J CPCD100J CPCD120J
Power type Diesel Diesel Diesel Diesel Diesel Diesel
Rated load kg 5000 6000 7000 8000 10000 12000
Load center distance mm 600 600 600 600 600 600
Lift height mm 3000 3000 3000 3000 3000 3000
Free lift height mm 172 172 182 182 150 85
Fork size L×W×T mm 1220×150×60 1220×150×60 1220×150×70 1220×150×80 1370×175×85 1820×175×85
Mast tilt angle Front/rear 。 8/10 8/10 8/10 8/10 8/10 8/10
Minimum turning radius mm 3580 3580 3580 3580 4280 4350
Minimum right angle stacking aisle width mm 5490 5490 5500 5500 6307 8250
Minimum right angle aisle width mm 3670 3670 3670 3670 4140 3877

Minimum ground clearance 		Frame center (no load) mm 250 250 250 250 340 406
Mast Bottom (no load) mm 185 185 185 207 232 260
Height of overhead guard mm 2500 2500 2500 2500 2600 2650
Front overhang mm 610 610 620 640 727 756
Maximum travel speed Full load km/h 22 22 22 22 20 26
No load km/h 25 25 25 25 24 28
Maximum lift speed Full load mm/s 460 460 460 400 350 286
No load mm/s 520 520 520 430 370 305
Maximum drawbar pull Full load kN 53 53 53 53 60 112
Maximum gradeability % 30 28 22 20 20 20
Overall length Without forks mm 3630 3630 3640 3640 4252 4528
Overall width mm 2045 2045 2045 2045 2268 2350
Mast height at maximum lift (with backrest) mm 4415 4415 4415 4415 4280 4655
Mast lowered height mm 2510 2510 2510 2510 2845 3230
Tires Front wheel 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR 8.25-15-18PR 9.00-20-14PR 10.00-20-18PR
Rear wheel 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR 8.25-15-18PR 9.00-20-14PR 10.00-20-18PR
Wheelbase mm 2300 2300 2300 2300 2800 2950
Tread Front wheel/rear wheel mm 1520/1700 1520/1700 1520/1700 1520/1700 1600/1700 1674/1890
Self weight Without load Kg 8760 9530 9970 10300 13640 16000
Battery Voltage/capacity V/Ah 24/160
24
Engine Model YC4A125-T300 YC4A125-T300 YC4A125-T300 YC4A125-T300 YC4A125-T300 CA6DF3/YCA07160-T300
Rated output kw/r.p.m 92/2200 92/2200 92/2200 92/2200 92/2200 118/2200 /118/2200
Rated torque Nm/r.p.m 480/1600-1800 480/1600-1800 480/1600-1800 480/1600-1800 480/1600-1800 640/1300-1700 /650/1300-1600
Bore x stroke mm 108×132 108×132 108×132 108×132 108×132 110×125 /108×125
Number of cylinders 4 4 4 4 4 6
Displacement L 4.837 4.837 4.837 4.837 4.837 7.12/6.87
Fuel tank capacity L 200 200 200 200 200 215
Transmissions (FWD/RWD) 2/2 electro-hydraulic steering 2/2 electro-hydraulic steering 2/2 electro-hydraulic steering 2/2 electro-hydraulic steering 2/2 electro-hydraulic steering 2/2 electro-hydraulic steering
Operating pressure Mpa 19.5
Tire type (FR/RR) Pneumatic tire Pneumatic tire Pneumatic tire Pneumatic tire Pneumatic tire Pneumatic tire
Number of wheels (FR/RR) 4/2
Lowering speed (full load) mm/s 460 460 460 500 410 383
Lowering speed (no load) mm/s 350 350 350 350 320 330
Axle load distribution (full load) (FR/RR) kg —— —— 13870/2150 —— 21400/2420 25175/2825
Axle load distribution (no load) (FR/RR) kg —— —— 3990/5840 —— 6160/7480 6435/9565

Features

  • Features

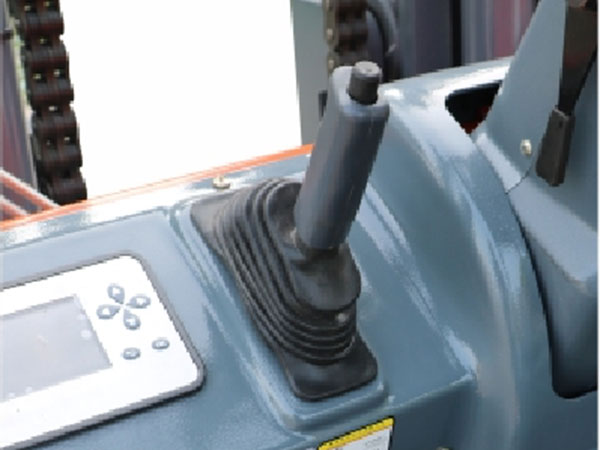

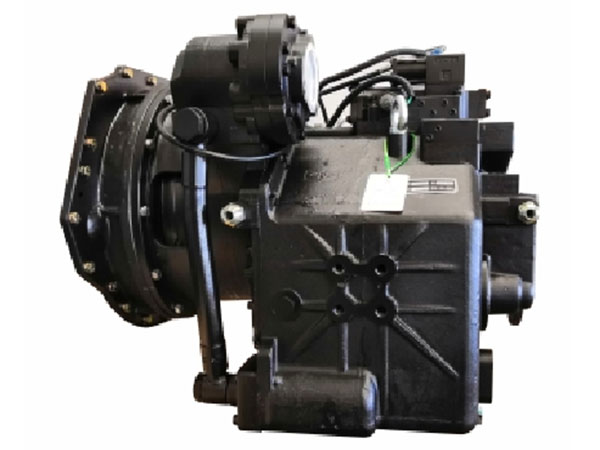

    Electro-hydraulic gearbox features easy operation. The CPCD120 is integrated with multi-plate clutch for quick speed control,enabling stable operation.

  • Features

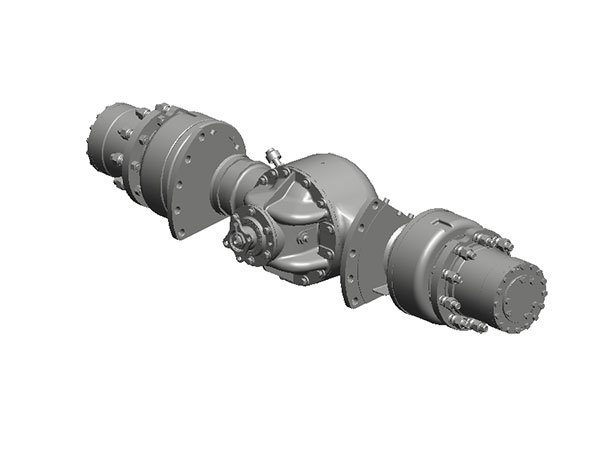

    Reinforced drive axle enables it to be more suitable for use under harsh working conditions.

  • Features

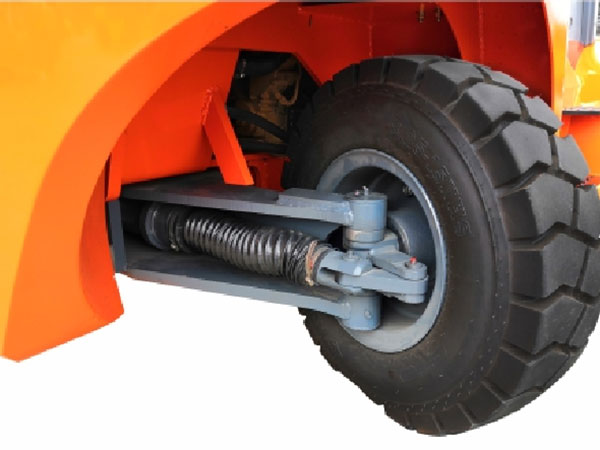

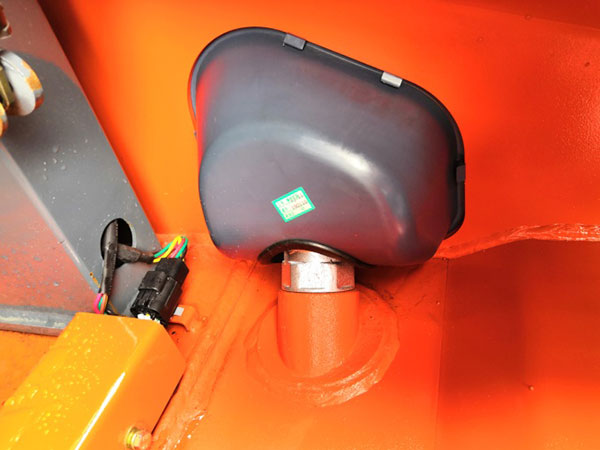

    A protective sleeve is added to the steering cylinder to reduce the external force damage of the cylinder.

  • Features

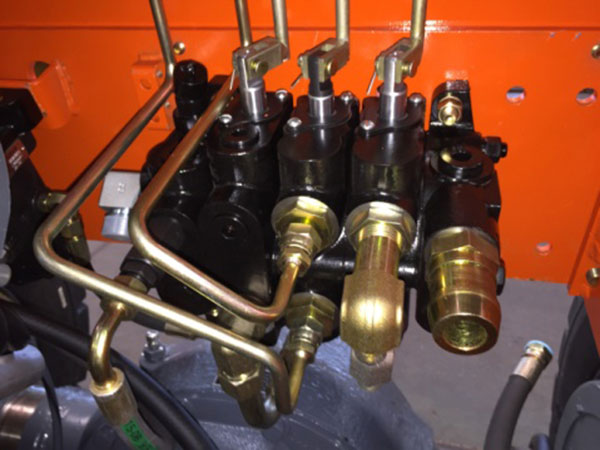

    Low-loss multi way valve application ensures lifting system efficiency is increased by 10%, oil temperature decreased by 12 ℃.

  • Features

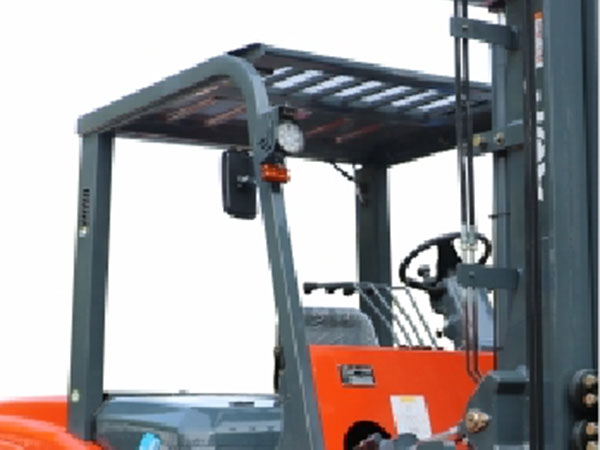

    The integral overhead guard can stand high pressure, which is rainproof and sun-proof, making it suitable for outdoor operation.

  • Features

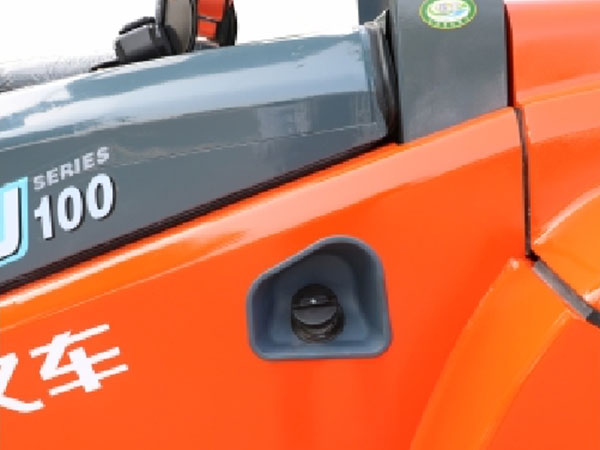

    180L large-capacity fuel tank provides longer working time for a single refueling.

  • Features

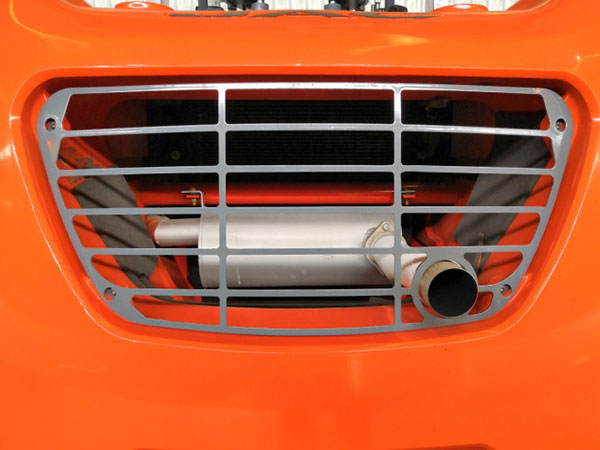

    With counterbalance mesh cover, the engine and control system can be well-protected for safe operation.

  • Features

    Ratchet-type brake system requires less effort from the operator to set.

  • Features

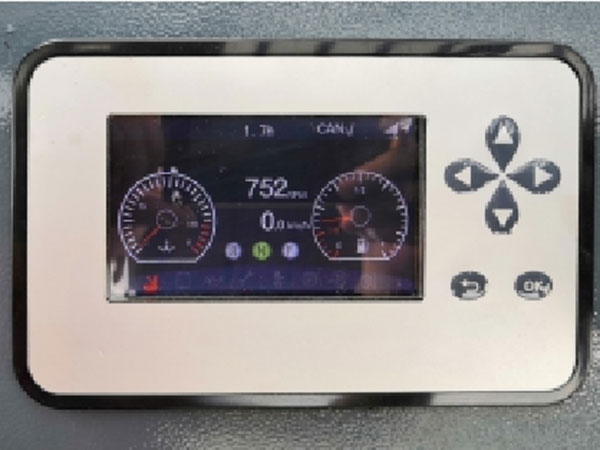

    Intelligent instrument realizes live preview of vehicle operation information in a real-time manner.

  • Features

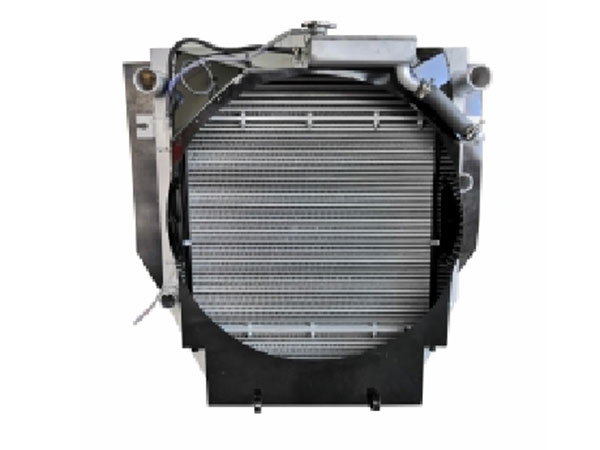

    Three-layer parallel composite radiator can raise the heat dissipation effect by 15%.

  • Features

    Combustion system is covered by gasket seal to prevent leakage, making clean and safe operation.

  • Features

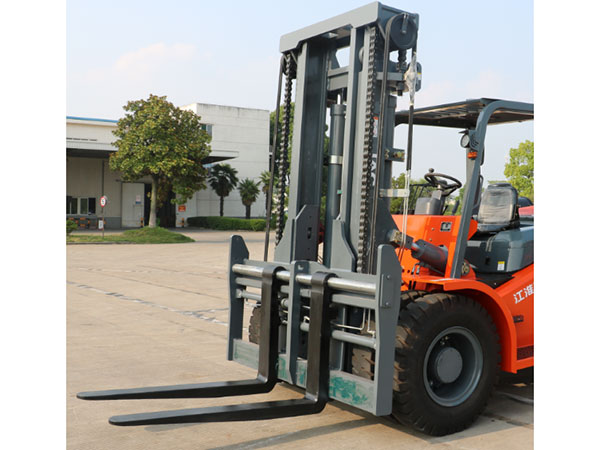

    12-ton heavy-duty structural wide-view mast
