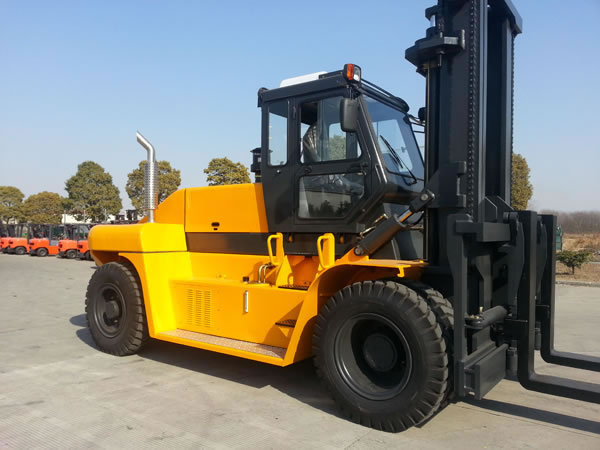

Diesel Forklift (16T Forklift Truck)
- Home
- Products
- Diesel Forklift
- Diesel Forklift (16T Forklift Truck)
Model | CPCD120 | CPCD135 | CPCD150 | CPCD160 | CPCD180 | ||
Features | Power type | Diesel | |||||
Rated load(kg) | 12000 | 13500 | 16000 | 16000 | 18000 | ||
Load center distance(mm) | 600 | 600 | 900 | 900 | 900 | ||
Lift height(mm) | 3000 | 3000 | 4000 | 4000 | 4000 | ||
Free lift height(mm) | 85 | 85 | 100 | 100 | 100 | ||
Fork size | L×W×T(mm) | 1820×200×85 | 1820×200×85 | 2400×250×90 | 2400×250×90 | 2400×250×90 | |
Mast tilt angle | Front/Rear | 8°/10° | 8°/10° | 8°/10° | 8°/10° | 8°/10° | |
Minimum turning radius(mm) | 4750 | 4750 | 5250 | 5250 | 5250 | ||
Minimum right angle stacking aisle width(mm) | 8485 | 8485 | 9176 | 9176 | 9176 | ||
Minimum right angle aisle width(mm) | 4486 | 4486 | 4354 | 4354 | 4354 | ||
Minimum ground clearance | Frame center(no load)(mm) | 320 | 320 | 350 | 350 | 350 | |
Mast Bottom(no load)(mm) | 210 | 210 | 265 | 265 | 265 | ||
Height of overhead guard(mm) | 3060 | 3060 | 3300 | 3300 | 3300 | ||
Overhang (FR)(mm) | 784 | 784 | 1040 | 1040 | 1040 | ||
Performance | Maximum travel speed | Full load(km/h) | 20 | 20 | 18 | 18 | 18 |
No load(km/h) | 24 | 24 | 20 | 20 | 20 | ||
Maximum lift speed | Full load(mm/s) | 370 | 370 | 220 | 220 | 220 | |
No load(mm/s) | 400 | 400 | 300 | 300 | 300 | ||
Maximum drawbar pull | Full load(KN) | 80 | 80 | 101 | 101 | 101 | |
Maximum gradeability(%) | 20 | 20 | 20 | 20 | 20 | ||
Dimensions | Overall length | Without forks(mm) | 4800 | 4800 | 5885 | 5885 | 5885 |
Overall width(mm) | 2600 | 2600 | 2620 | 2620 | 2620 | ||
Mast height at maximum lift (with backrest)(mm) | 4725 | 4725 | 5845 | 5845 | 5845 | ||
Mast lowered height(mm) | 3230 | 3230 | 3850 | 3850 | 3850 | ||
Chassis | Tires | Front wheel | 11.00-20-18PR | 11.00-20-18PR | 12.00-24-24PR | 12.00-24-24PR | 12.00-24-24PR |
Rear wheel | 11.00-20-18PR | 11.00-20-18PR | 12.00-24-24PR | 12.00-24-24PR | 12.00-24-24PR | ||
Wheelbase(mm) | 3000 | 3000 | 3800 | 3800 | 3800 | ||
Tread | Front wheel/rear wheel(mm) | 1950/2050 | 1950/2050 | 1968/2248 | 1968/2248 | 1968/2248 | |
Self weight | Without load(Kg) | 18700 | 19500 | 25000 | 25000 | 26600 | |
Drive | Battery | Voltage/capacity(V/Ah) | 24/150 | ||||
Engine | Model | CA6DF3 Xichai | CA6DF3 Xichai | YC6J175-T302 Yuchai | YC6J175-T302 Yuchai | YC6J175-T302 Yuchai | |
Rated output(kw/r.p.m) | 118/2200 | 118/2200 | 129/2200 | 129/2200 | 129/2200 | ||
Rated torque(Nm/r.p.m) | 640/1500 | 640/1500 | 710/1600-1800 | 710/1600-1800 | 710/1600-1800 | ||
Bore x stroke(mm) | 110×125 | ||||||
Number of cylinders | 6 | 6 | 6 | 6 | 6 | ||
Displacement(L) | 7.127 | 7.127 | 6.494 | 6.494 | 6.494 | ||
Fuel tank capacity(L) | 130 | 130 | 200 | 200 | 200 | ||
Transmissions (FWD/RWD) | 2/2 electronic gearshifting | 2/2 electronic gearshifting | 3/3 electronic gearshifting | electronic gearshifting | electronic gearshifting | ||
Operating pressure(Mpa) | 20 | 20 | 20 | 20 | 20 | ||
Supplement | Tire type (FR/RR) | Pneumatic | |||||
Number of wheels (FR/RR)(pcs) | 4/2 | 4/2 | 4/2 | 4/2 | 4/2 | ||
Lowering speed (full load)(mm/s) | 410 | 410 | 410 | 410 | 410 | ||
Lowering speed (no load)(mm/s) | 320 | 320 | 320 | 320 | 320 | ||
Axle load distribution (full load) (FR/RR)(kg) | 27650/3050 | 29500/3500 | 36000/4000 | 37200/3800 | 40000/4600 | ||
Axle load distribution (no load) (FR/RR)(kg) | 7500/11200 | 8000/11500 | 10200/14800 | 10200/14800 | 13000/13600 |
Note: JAC reserves the right to change these specifications and parameters at any time without prior notice.
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year

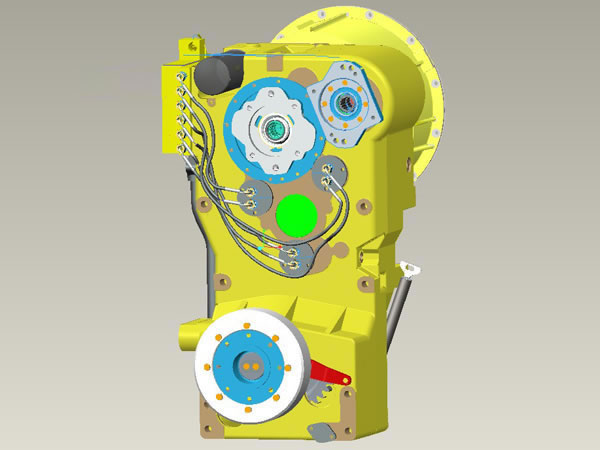

1. Scientifically designed power transmission system

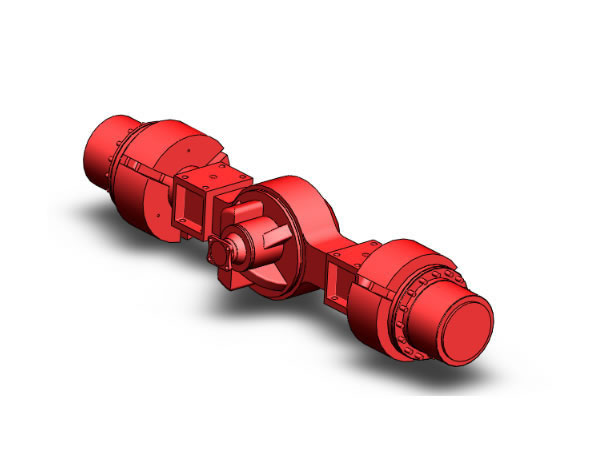

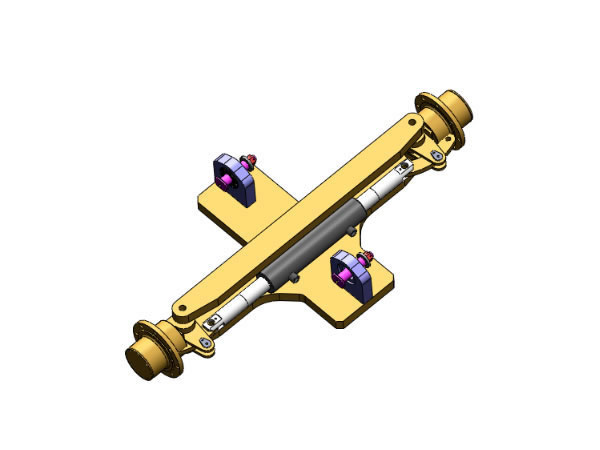

2. Dedicated twin axle for heavy-load lift truck
3. Reliable hydraulic system

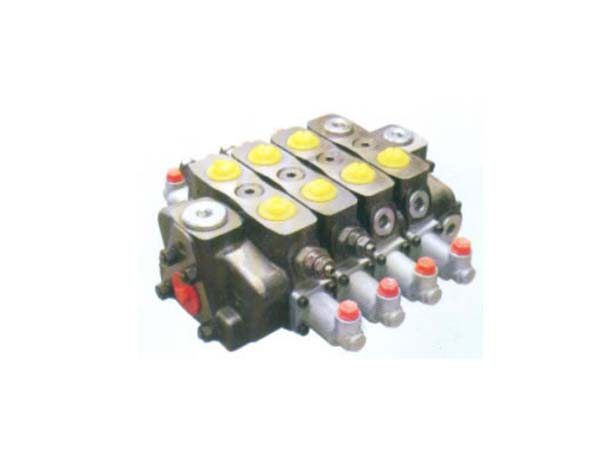

A . The hydraulic system of the diesel forklift adopts imported multi-way valve for high safety and high reliability.

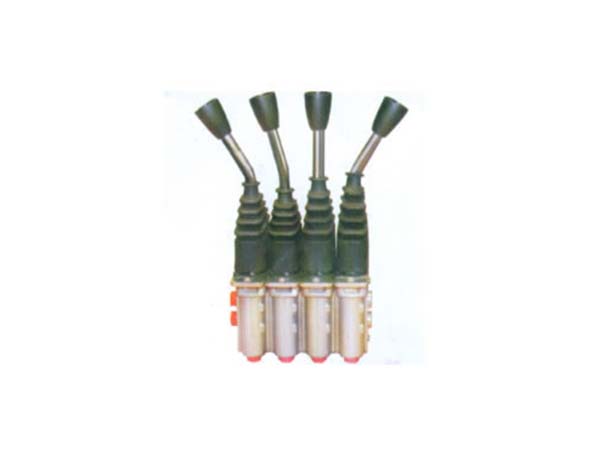

B. Under the control of remote pilot hand lever, the hydraulic system of the material handling equipment helps achieve easy and convenient operation.
C. The main hydraulic parts are purchased from well-known suppliers home and abroad, and have passed performance test.

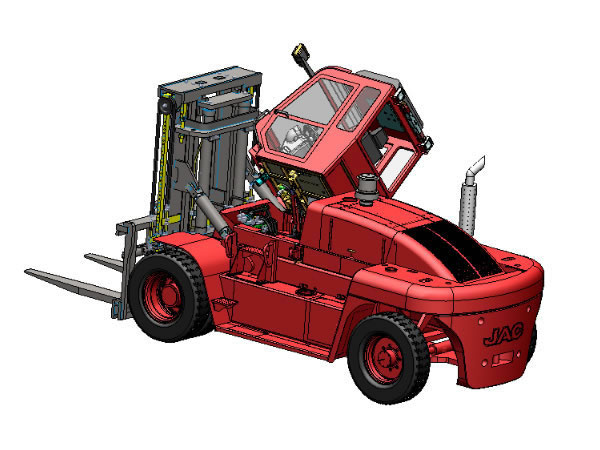

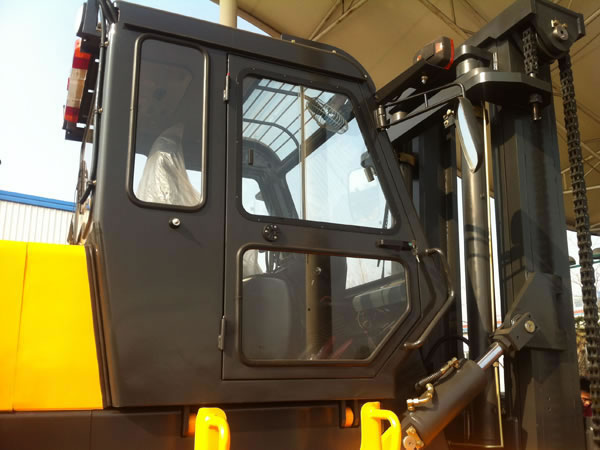

4. The tip-over of the spacious cab can be controlled manually or electrically.
