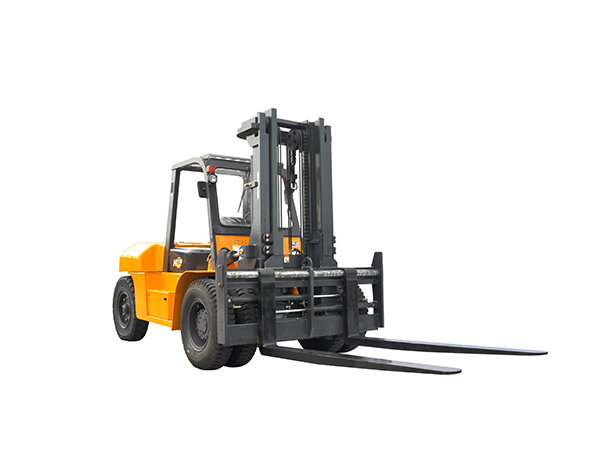

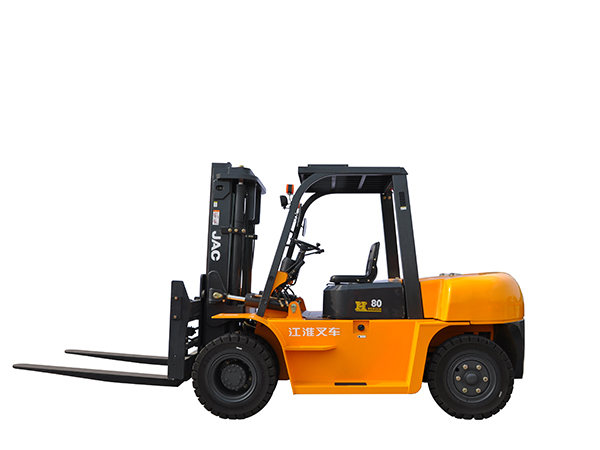

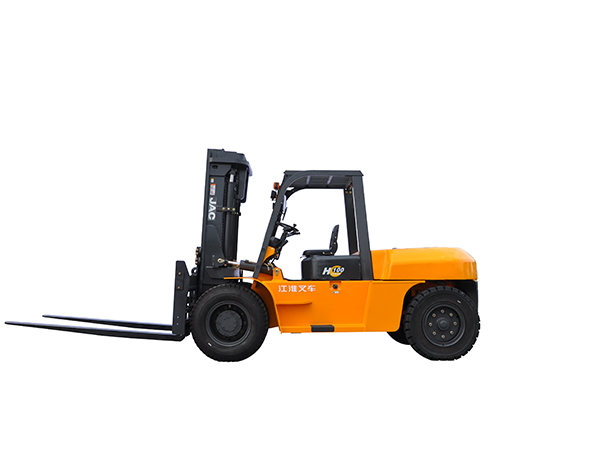

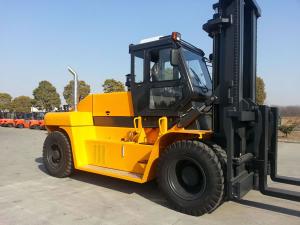

CPCD90H Diesel Forklift
| Model | CPCD90H |
| Rated Load Capacity | 9000kg |
| Engine | Engine from ISUZU, PERKINS, and other Chinese supplier |
| Gearbox | Hydraulic/automatic (TCM technology) |
| Standard Mast | 2-stage mast (3m) |
| Container Mast (Optional) | 2-stage or 3-stage full free mast (3m-6m) |
| Tyre | Pneumatic tyre (Standard), solid tyre (Optional) |
| Side Shifter (Optional) | Integrated type side shifter, CASCADE side shifter |
| Model | CPCD80H | CPCD100H | ||
| Features | Power type | Diesel | ||
| Rated load（kg） | 8000 | 10000 | ||
| Load center distance（mm） | 600 | |||
| Lift height（mm） | 3000 | |||
| Free lift height（mm） | 185 | 175 | ||
| Fork size | L×W×T（mm） | 1220×150×80 | 1370×175×85 | |
| Mast tilt angle | Front/Rear | 6°/12° | ||
| Minimum turning radius（mm） | 3370 | 3950 | ||
| Minimum right angle stacking aisle width（mm） | 5310 | 5977 | ||
| Minimum right angle aisle width（mm） | 3100 | 3540 | ||
| Minimum ground clearance | Frame center(no load)（mm） | 220 | 280 | |
| Mast Bottom（no load）（mm） | 205 | 245 | ||
| Height of overhead guard（mm） | 2500 | 2560 | ||
| Overhang (FR)（mm） | 640 | 727 | ||
| Performance | Maximum travel speed | Full load（km/h） | 24 | 22 |
| No load（km/h） | 25 | |||
| Maximum lift speed | Full load（mm/s） | 400 | 200 | |
| No load（mm/s） | 430 | 410 | ||
| Maximum drawbar pull | Full load （KN） | 53 | 60 | |
| Maximum gradeability（%） | 20 | |||
| Dimensions | Overall length | Without forks（mm） | 3610 | 4258 |
| Overall width（mm） | 1995 | 2268 | ||
| Mast height at maximum lift (with backrest)（mm） | 4335 | 4325 | ||
| Mast lowered height（mm） | 2510 | 2845 | ||
| Chassis | Tires | Front wheel | 8.25-15-18PR | 9.00-20-14PR |
| Rear wheel | 8.25-15-18PR | 9.00-20-14PR | ||
| Wheelbase（mm） | 2250 | 2800 | ||
| Tread | Front wheel/rear wheel（mm） | 1470/1700 | 1600/1700 | |
| Self weight | Without load（Kg） | 10460 | 12930 | |
| Drive | Battery | Voltage/capacity（V/Ah） | 24/160 | |

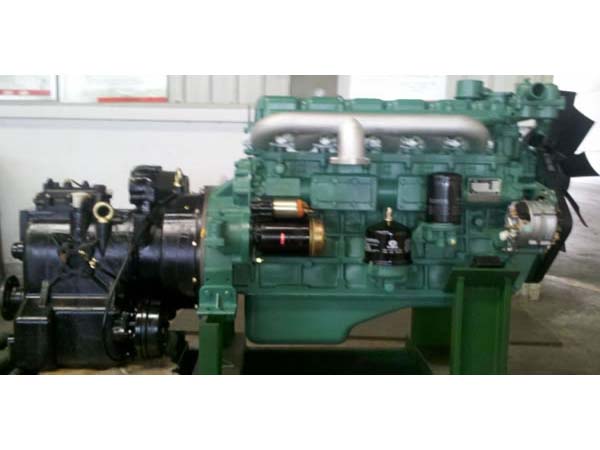

| Engine | Model | CA4DF3 | ||
| Rated output（kw/r.p.m） | 85/2200 | |||
| Rated torque（Nm/r.p.m） | 460/1400-1500 | |||
| Bore x stroke（mm） | 110×125 | |||
| Number of cylinders | 4 | |||
| Displacement（L） | 4.75 | |||
| Fuel tank capacity（L） | 110 | 120 | ||
| Transmissions (FWD/RWD) | 2/2 manual shift | |||
| Operating pressure（Mpa） | 19.5 | |||
| Supplement | Tire type (FR/RR) | Pneumatic | ||
| Number of wheels (FR/RR)（pcs） | 4/2 | |||
| Lowering speed (full load)（mm/s） | 500 | 400 | ||
| Lowering speed (no load)（mm/s） | 350 | 330 | ||
| Axle load distribution (full load) (FR/RR)（kg） | 16620/1850 | 20670/2290 | ||
| Axle load distribution (no load) (FR/RR)（kg） | 4180/6270 | 5190/7780 | ||
Note: JAC reserves the right to change these specifications and parameters at any time without prior notice.
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
Features
1. The hydraulic drive system of H series diesel forklift provides stable and efficient driving effect.

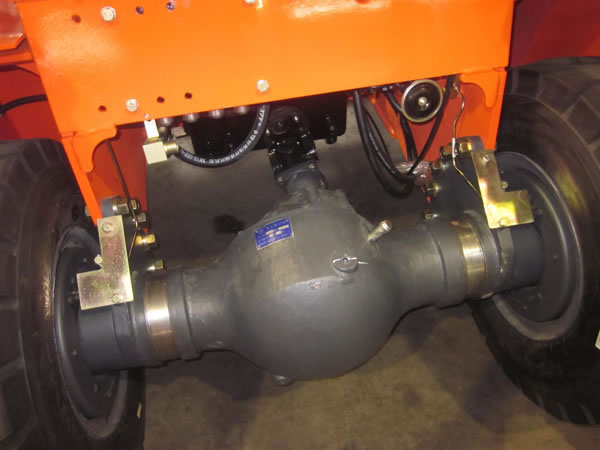

2. The hyperbolic design for the main reducer of drive axle helps realize smooth meshing. Apart from the low noise, this design extends the lifespan of the drive axle, as well.

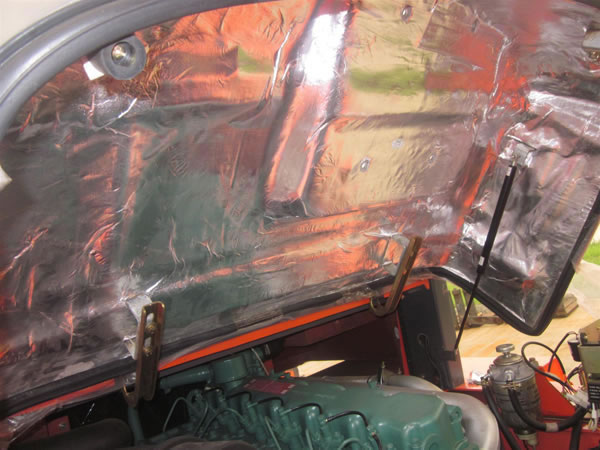

3. To improve the working environment, we specially manufacture the hood of the diesel powered forklift with heat-insulated and sound absorbing material. Apart from that, the gap is filled with rubber for vibration absorption.

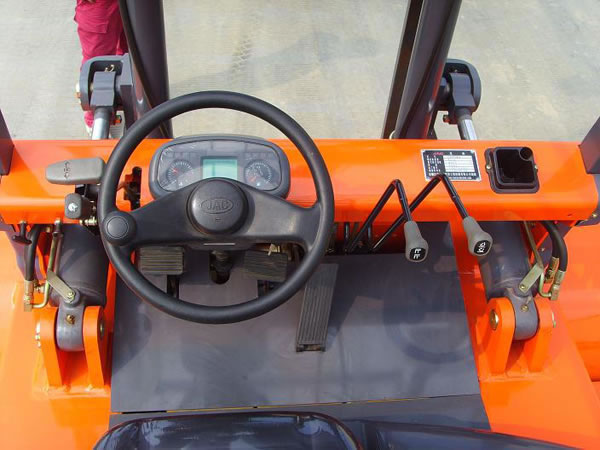

4. Our diesel forklift is meticulously designed according to ergonomics, which effectively enlarges the working space and minimizes the fatigue of the operator.

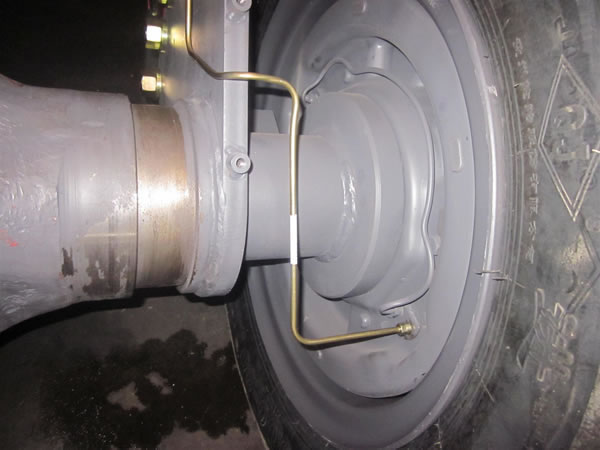

5. Thanks to the drum brake, the sensitive braking effect of the heavy-duty forklift truck makes this product particularly safe and reliable for use.

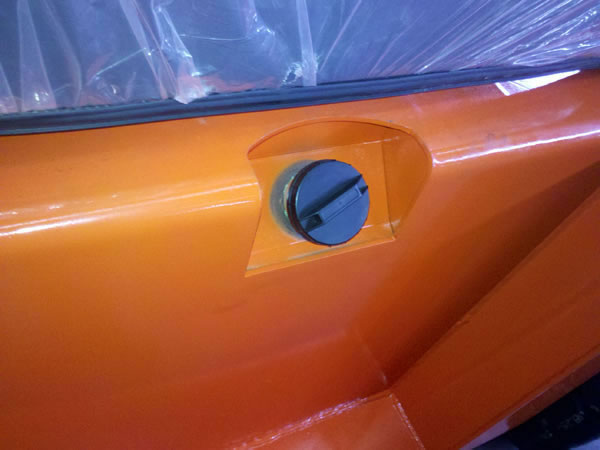

6. The fuel tank cap is located at the side of the tank. The self-locking structure of the cap completely avoids fuel leakage.

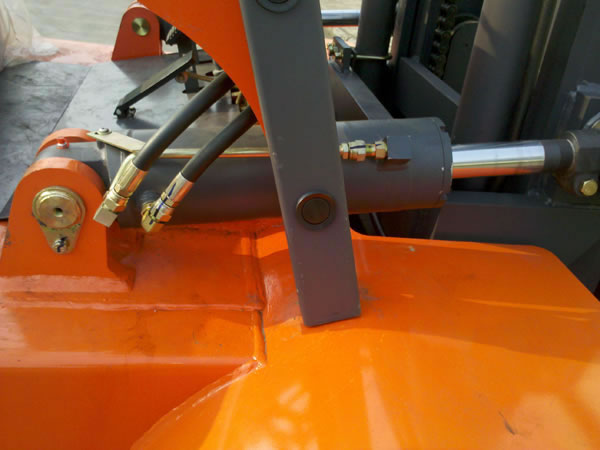

7. The simple and attractive structure of the overhead guard makes the dismantling of the product much easier. In the meantime, the impact resistance of the lift truck is greatly improved.

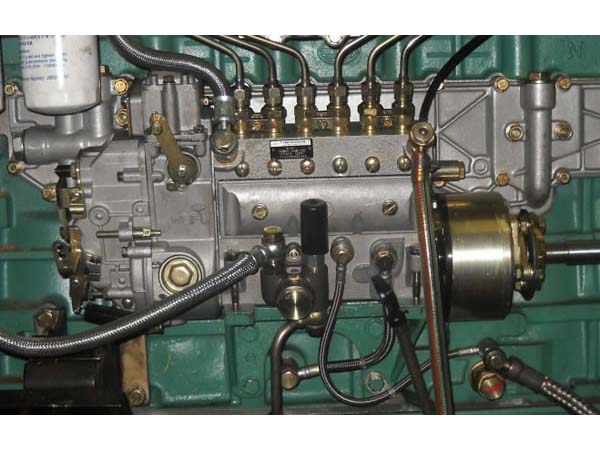

8. The oil pump speed controller is upgraded to reduce blue smoke generated during engine idling and cold start.
Related Names
8-10T Forklift Truck
