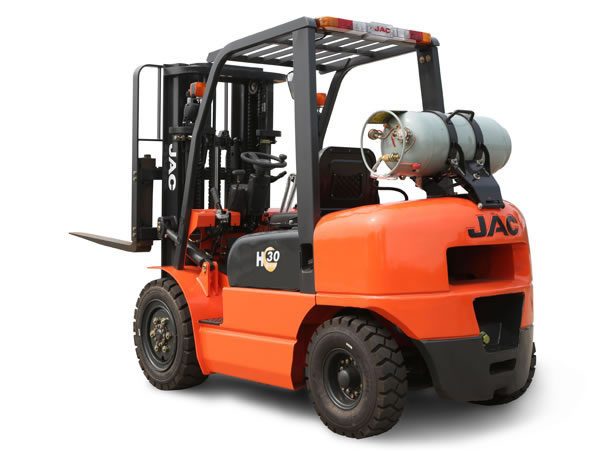

Gasoline LPG Forklift (3-3.5T Forklift Truck, H Series)

  1. Home
  2. Products
  3. Gasoline LPG Forklift
  4. Gasoline LPG Forklift (3-3.5T Forklift Truck, H Series)
Gasoline LPG Forklift (3-3.5T Forklift Truck, H Series)
Inquiry Form
Specifications of Gasoline LPG Forklift
Model CPCD10, CPCD15, CPCD18, CPCD20, CPCD25, CPCD30, CPCD35
Rated Load Capacity 1000kg, 1500 kg, 1800 kg, 2000 kg, 2500 kg, 3000 kg, 3500 kg
Engine Engine from Nissan, and other Chinese supplier
Gearbox Hydraulic/automatic (TCM technology)
Standard Mast 2-stage mast (3m)
Container Mast (Optional) 2-stage or 3-stage full free mast (3m-6m)
Tyre Pneumatic tyre (Standard), solid tyre (Optional)
Side Shifter (Optional) Integrated type side shifter, CASCADE side shifter

Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year

Selling Point

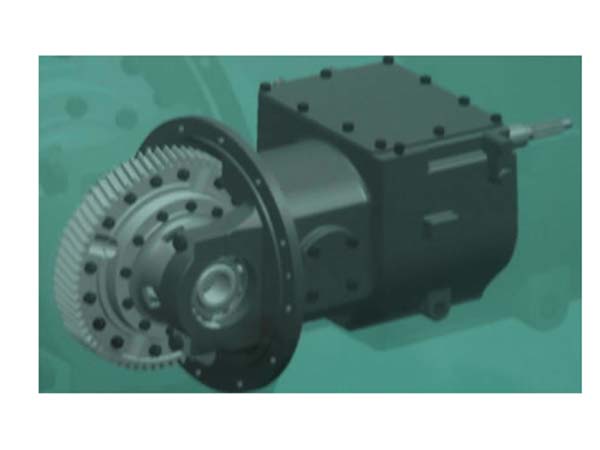

1. The H series Gasoline LPG Forklift comes with the load capacity from 2 tons to 2.5 tons. It is equipped with first class drive system and high quality gearbox.

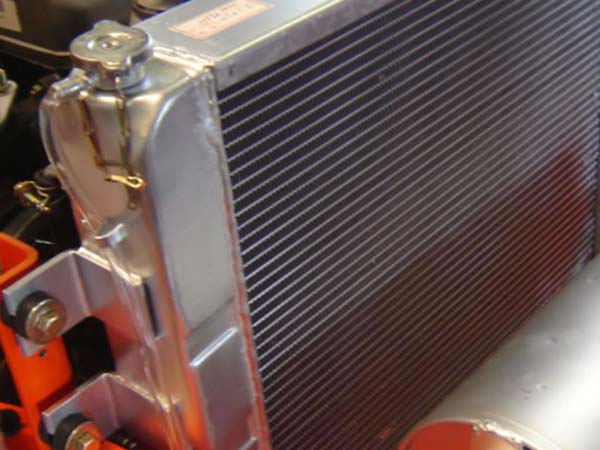

2. For optimal heat dissipation effect, we particularly manufacture the heavy-duty lift truck with aluminium radiator.

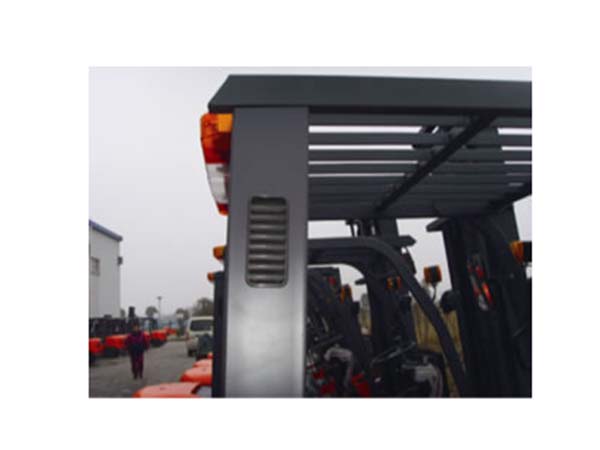

3. The air intake system of the Gasoline LPG Forklift is installed at high level to prevent the dust from entering the engine, so the lifespan of the engine is extended, accordingly.

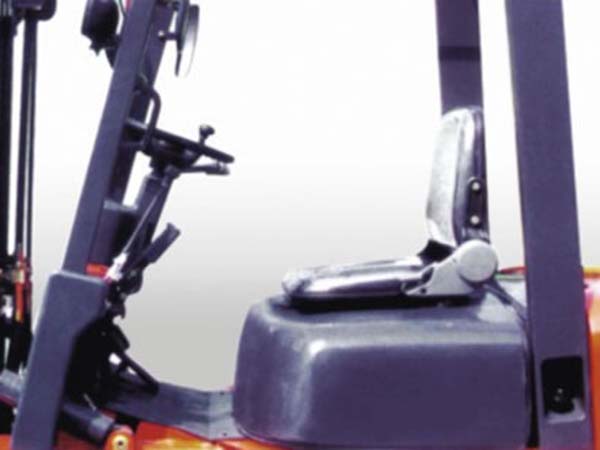

4. Thanks to the adjustable seat and steering wheel, the working space can be enlarged. The comfortable environment brings worker a good mood.

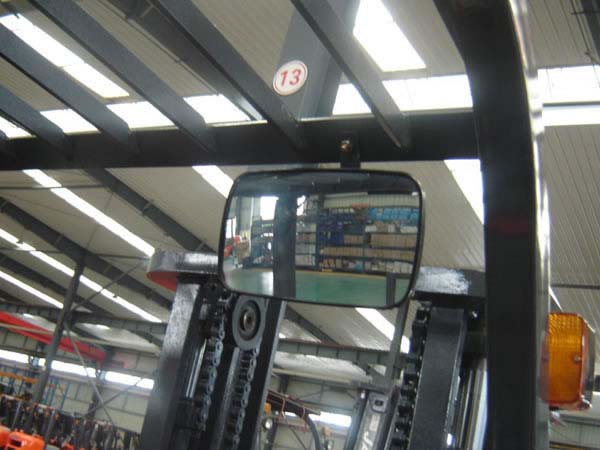

5. Wide field of view

6. Streamlined design for the balance weight of the industrial forklift truck makes for attractive and unique appearance of our product.

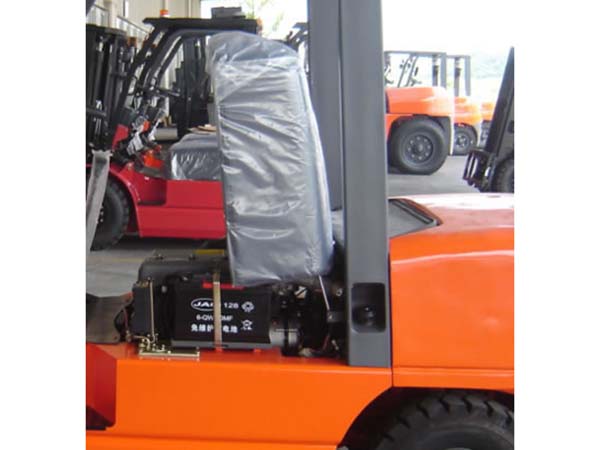

7. Big opening angle of the hood makes the maintenance of the fork truck easier.

Technical Parameters of Gasoline LPG Forklift
Model Unit CPCD10 CPCD15 CPCD18 CPCD20 CPCD25 CPCD30 CPCD35
Rated load kg 1000 1500 1800 2000 2500 3000 3500
Load Center Distance mm 500 500 500
Minimum Turning Radius mm 1880 1955 1985 2170 2230 2550 2570

Maximum Travel speed		 Full load km/h 15 18 19 19
No load km/h 15 18 19 20
Dimensions
Overall Length mm 2160 2235 2270 2485 2560 2765 2810
Overall Width mm 1080 1160 1230
Height of Overhead Guard mm 2060 2070 2090
Wheels, Chassis
Tires Front Wheel   6.50-10-10PR 7.00-12-12PR 28×9-15-14PR
Rear Wheel   5.00-8-10PR 6.00-9-10PR 6.50-10-10PR
Weight
Self Weight No Load kg 2430 2790 2890 3300 3660 4140 4600
Drive
Engine Model   Quanchai V25-45V42 Xinchang 4D29V41 Xinchang 4D29V41
Rated Power kw/r.p.m 33.1/2600 36.8/2500 36.8/2500
Rated Torque Nm/r.p.m 145/1800-2000 165/1600-1800 165/1600-1800
Number of Cylinders   4 4 4
Displacement L 2.54 2.85 2.85

Related Names
3-3.5T Forklift Truck︱Eco-Friendly Lift Truck︱Heavy-Duty Forklift Truck
