Electric Forklift (1-1.8T Four Wheel Forklift, J Series)
Inquiry Form
Specifications of Electric Forklift
Model CPD13J CPD16J CPD18J
Features Power type Battery
Rated load（kg） 1300 1600 1800
Load center distance（mm） 500
Lift height（mm） 3000
Free lift height（mm） 120
Fork size L×W×T（mm） 1070×122×40
Mast tilt angle Front/Rear 6°/10°
Minimum turning radius（mm） 1990 2030 2030
Minimum right angle stacking aisle width（mm） 3397 3437 3437
Minimum right angle aisle width（mm） 2190 2230 2230
Minimum ground clearance（mm） 93
Height of overhead guard（mm） 2132
Height form seat to overhead guard（mm） 1020
Overhang (FR)（mm） 407
Performance
Maximum travel speed 		Full load（km/h） 12
No load（km/h） 13

Maximum lift speed 		Full load（mm/s） 260 300 240 300 240 280
No load（mm/s） 400

Maximum lowering speed 		Full load（mm/s） 460
No load（mm/s） 430
Maximum gradeability（%） 15 15 15 15 15 15
Dimensions Overall length Without forks（mm） 2158 2220 2220
Overall width（mm） 1072 1072 1072

Mast height at maximum lift (with backrest)（mm） 		3930 3930 3930
Mast lowered height（mm） 1990
Power Tires Front wheel 6.00-9-10PR
Rear wheel 5.00-8-10PR
Wheelbase（mm） 1370
Tread Front wheel/rear wheel（mm） 894/920
Self weight Without load（kg） 2840 3000 3120
Battery Voltage/capacity（V/Ah） 48/400
Motor Traveling（KW） 8
Lifting（KW） 7.5 10 7.5 10 7.5 10
Way of control BC AC BC AC BC AC
Operating pressure（Mpa） 15.5
Maximum drawbar pull（KN） 13

Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year

Features

1. Neutral gear safety system- Prevent the accidents that caused by accidential starting.

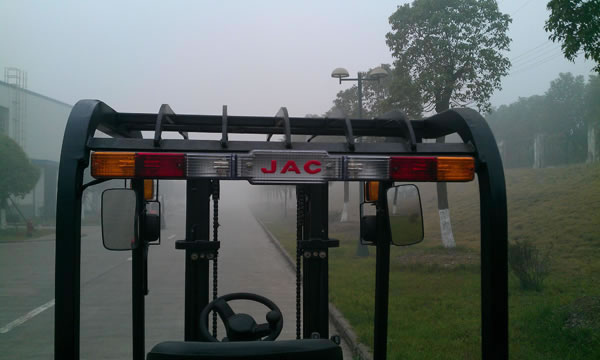

2. The combined type design of the taillight makes for nice appearance of the 1-1.8T four wheel forklift.

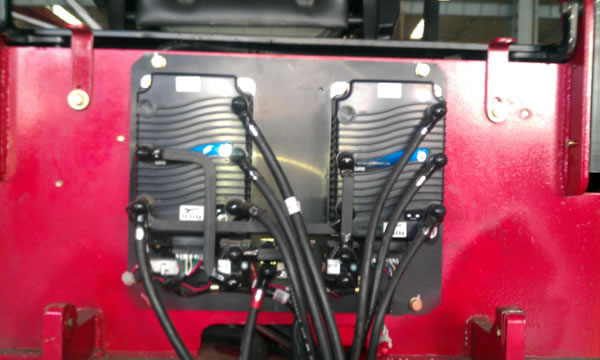

3. The imported CURTIS controller is installed with our patented technology, to achieve optimal heat dissipation effect.

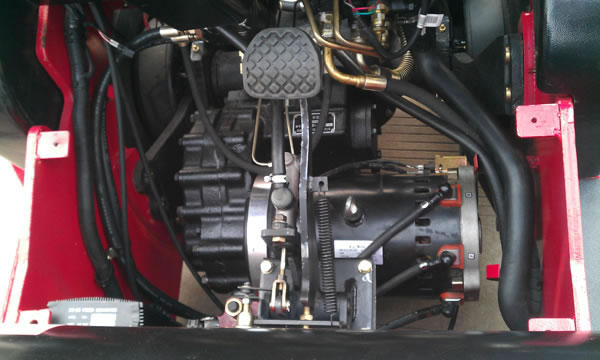

4. The transverse gearbox of the electric forklift effectively improves the transmission efficiency and working hours of the battery.

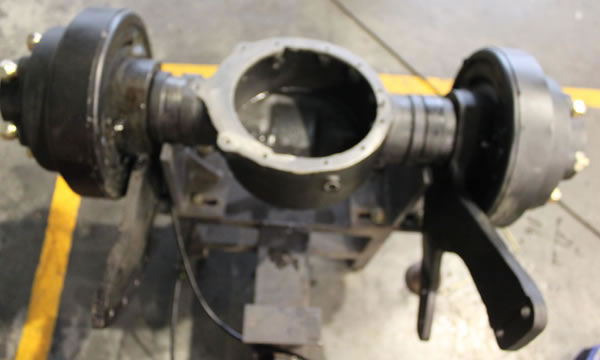

5. Granted the national patent, the 360° rotatable plate-type drive axle makes the maintenance of the motor and the gearbox easier.

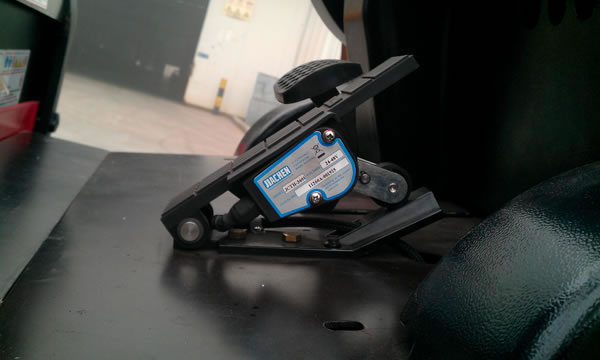

6. Our industrial forklift is installed with CURTIS accelerator. Based on ergonomics, we particularly manufacture the electric forklift with the foot brake pedal slightly higher than the accelerator.

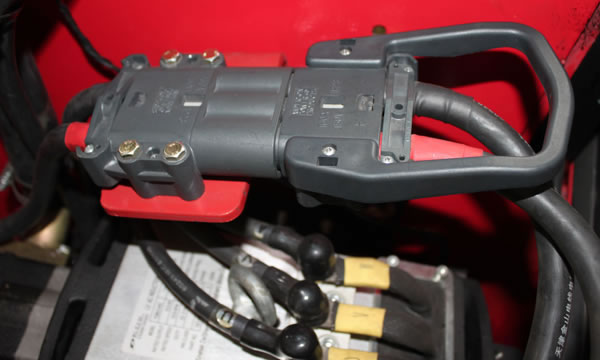

7. REMA connector for convenient power supply connection

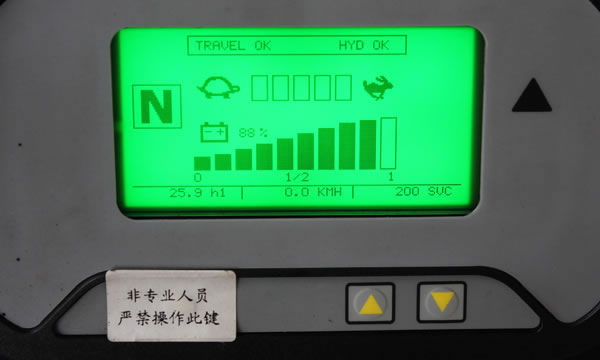

8. The lift truck is constructed with LCD instrument panel with good resistance to water and vibration from CURTIS. The important information can be displayed on the screen completely. So the user can understand the working conditions of the product timely and precisely.
