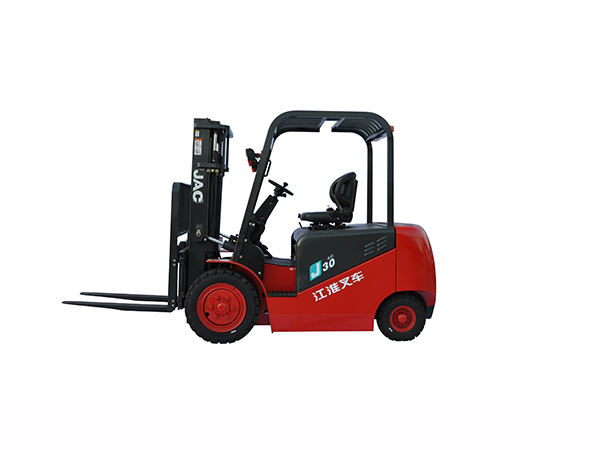

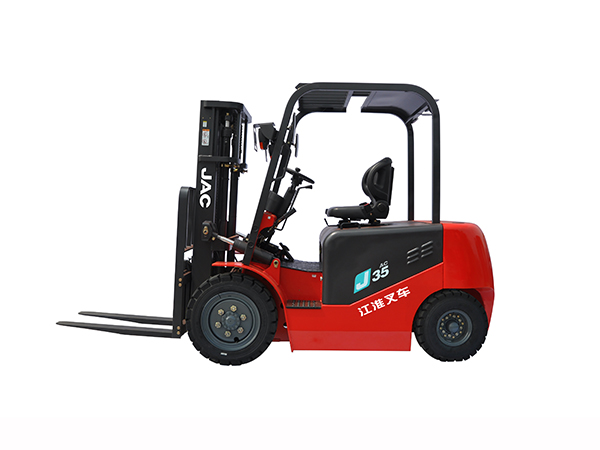

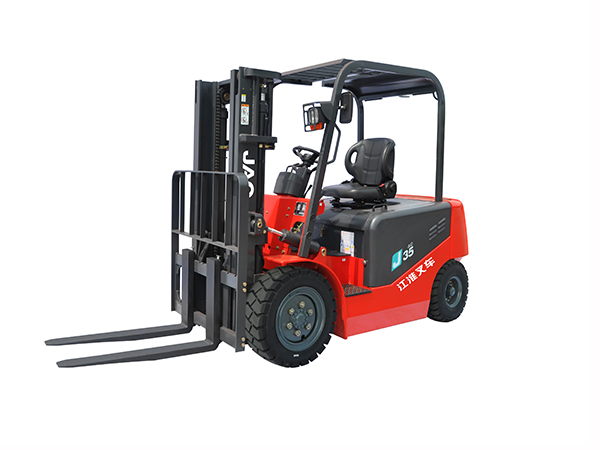

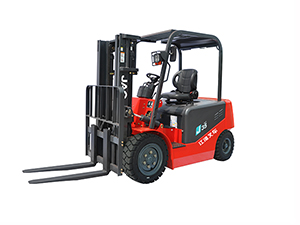

Electric Forklift (3-3.5T Four Wheel Forklift, J Series)
- Home
- Products
- Electric Forklift
- Electric Forklift (3-3.5T Four Wheel Forklift, J Series)
| Model | CPD30J | CPD35J | ||||
| Features | Power type | Battery | ||||
| Rated load（） | 3000 | 3500 | ||||
| Load center distance（mm） | 500 | |||||
| Lift height（mm） | 3000 | |||||
| Free lift height（mm） | 160 | 70 | ||||
| Fork size | L×W×T（mm） | 1070×125×45 | 1070×125×50 | |||
| Mast tilt angle | Front/Rear | 8°/10° | ||||
| Minimum turning radius（mm） | 2497 | 2520 | ||||
| Minimum right angle stacking aisle width（mm） | 4181 | 4204 | ||||
| Minimum right angle aisle width（mm） | 2609 | 2720 | ||||
| Minimum ground clearance（mm） | 120 | |||||
| Height of overhead guard（mm） | 2180 | |||||
| Height form seat to overhead guard（mm） | 980 | |||||
| Overhang (FR)（mm） | 474 | 492 | ||||
| Performance | Maximum travel speed | Full load（km/h） | 12 | |||
| No load（km/h） | 13 | |||||
| Maximum lift speed | Full load（mm/s） | 240 | 260 | 200 | 240 | |
| No load（mm/s） | 400 | 380 | ||||
| Maximum lowering speed | Full load（mm/s） | 400 | 350 | |||
| No load（mm/s） | 460 | 400 | ||||
| Maximum gradeability（%） | 15 | 15 | 10 | 10 | ||
| Dimensions | Overall length | Without forks（mm） | 2609 | 2627 | ||
| Overall width（mm） | 1250 | |||||
| Mast height at maximum lift (with backrest)（mm） | 4228 | |||||
| Mast lowered height（mm） | 2065 | 2120 | ||||
| Power | Tires | Front wheel | 28×9-15-14PR | 28×9-15 | ||
| Rear wheel | 6.50-10-10PR | |||||
| Wheelbase（mm） | 1700 | |||||
| Tread | Front wheel/rear wheel（mm） | 1000/990 | ||||
| Self weight | Without load（kg） | 4960 | 5400 | |||
| Battery | Voltage/capacity（V/Ah） | 80/500 | ||||
| Motor | Traveling（KW） | 16.6 | ||||
| Lifting（KW） | 13 | 13.5 | 13 | 13.5 | ||
| Way of control | BC | AC | BC | AC | ||
| Operating pressure（Mpa） | 18.5 | |||||
| Maximum drawbar pull（KN） | 21 | |||||
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
Features
1. Neutral gear safety system- Prevent the accidents that caused by accidential starting.

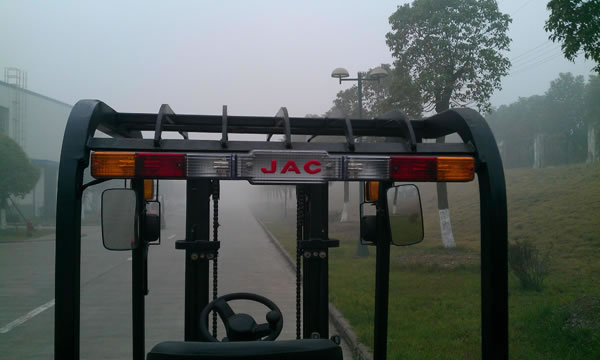

2. The combined type taillight makes this 3-3.5T four wheel forklift attractive and noticeable.

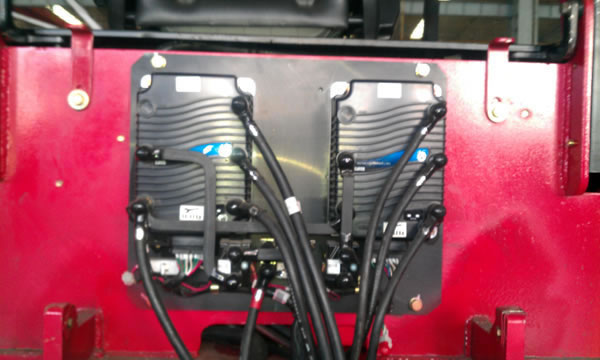

3. The imported CURTIS controller is installed with our patented technology to achieve outstanding heat dissipation effect.

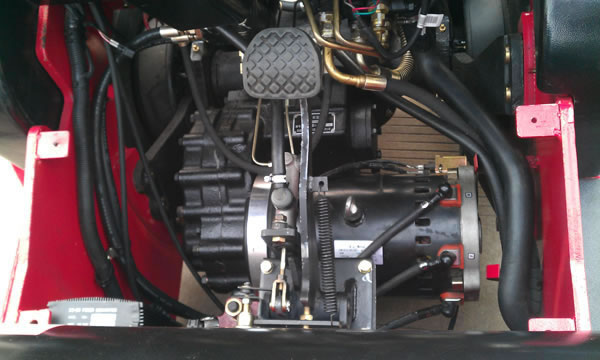

4. Our heavy-duty electric lift truck is engineered with transverse gearbox. Apart from the improvement in the transmission efficiency, the special design helps enhance the single operating time of the battery.

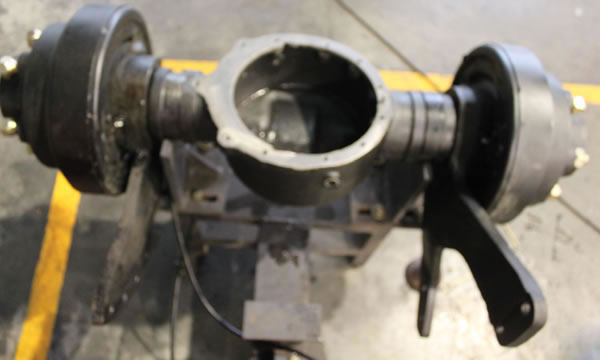

5. Fan-shaped plate-type drive axle of the electric forklift can rotate at 360° angle. So the maintenance of the motor and the gearbox is quite convenient. This technology has been granted national patent.

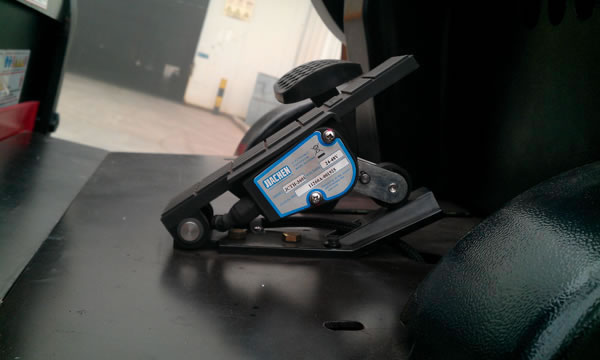

6. Since the foot brake pedal is slightly higher than the CURTIS accelerator, this industrial electric forklift offers high comfort during operation.

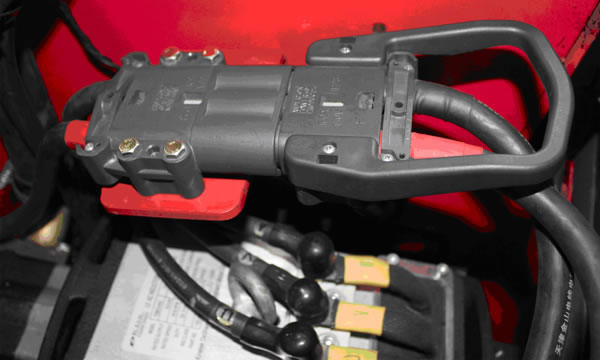

7. REMA power supply connector assembly for convenient connection of power supply.

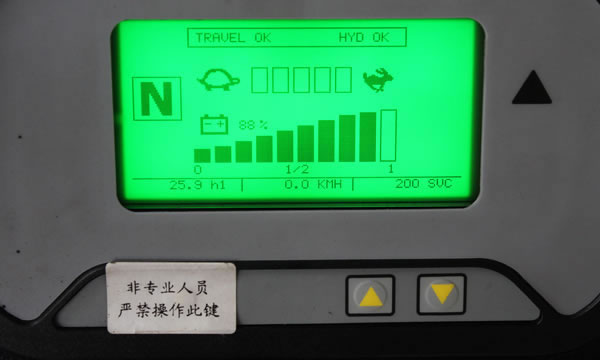

8. The lift truck comes with CURTIS LCD instrument panel with good resistance to water and vibration. The important information can be displayed on the screen completely, enabling the user to understand the working conditions of the product.
