Electric Forklift(1-1.8T Four Wheel Forklift, S Series)
- Home
- Products
- Electric Forklift
- Electric Forklift(1-1.8T Four Wheel Forklift, S Series)

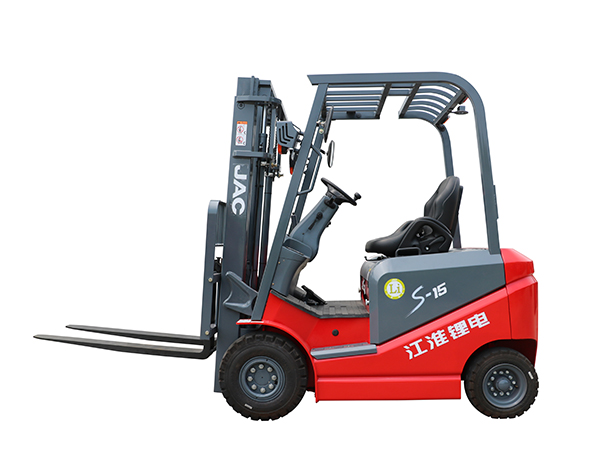

CPD15S/CPD18S electric forklifts are equipped with lithium battery which features a long service time after single charging. In addition, these electric forklifts have power regeneration function to prolong the service time that it recovers the electric quantity of battery when the electric forklift is braking, slowing down or steering. All their connectors and cables are made by waterproof and insulation materials that greatly improves the work safety. The suspension OPS seat with free back and forth movement and adjustable backrest angle provides a comfortable working environment for the driver.
| Model | CPD15S | CPD18S | ||||
| Features | Power type | Battery | ||||
| Rated load（kg） | 1500 | 1800 | ||||
| Load center distance（mm） | 500 | |||||
| Lift height（mm） | 3000 | |||||
| Free lift height（mm） | 120 | |||||
| Fork size | L×W×T（mm） | 1070×100×40 | ||||
| Mast tilt angle | Front/Rear | 6°/10° | ||||
| Minimum turning radius（mm） | 1930 | |||||
| Minimum right angle stacking aisle width（mm） | 3507 | |||||
| Minimum right angle aisle width（mm） | 2130 | |||||
| Minimum ground clearance（mm） | 100 | |||||
| Height of overhead guard（mm） | 2060 | |||||
| Height form seat to overhead guard（mm） | 1020 | |||||
| Overhang (FR)（mm） | 407 | |||||
| Performance | Maximum travel speed | Full load（km/h） | 13 | |||
| No load（km/h） | 14 | |||||
| Maximum lift speed | Full load（mm/s） | 240 | 300 | 240 | 300 | |
| No load（mm/s） | 400 | |||||
| Maximum lowering speed | Full load（mm/s） | 410 | ||||
| No load（mm/s） | 450 | |||||
| Maximum gradeability（%） | 15 | |||||
| Dimensions | Overall length | Without forks（mm） | 2130 | |||
| Overall width（mm） | 1128 | |||||
| Mast height at maximum lift (with backrest)（mm） | 4035 | |||||
| Mast lowered height（mm） | 1990 | |||||
| Power | Tires | Front wheel | 21×8-9-16PR | |||
| Rear wheel | 16×6-8-16PR | |||||
| Wheelbase（mm） | 1415 | |||||
| Tread | Front wheel/rear wheel（mm） | 928/958 | ||||
| Self weight | Without load（kg） | 3000 | 3150 | |||
| Battery | Voltage/capacity（V/Ah） | 48/400 | 48/500 | |||
| Motor | Traveling（KW） | 8 | 8 | 8 | 8 | |
| Lifting（KW） | 7.5 | 10.6 | 7.5 | 10.6 | ||
| Way of control | BC | AC | BC | AC | ||
| Operating pressure（Mpa） | 15.5 | 15.5 | 15.5 | 15.5 | ||
| Maximum drawbar pull（KN） | 13 | |||||
Note: JAC reserves the right to change these specifications and parameters at any time without prior notice.
Selling Point

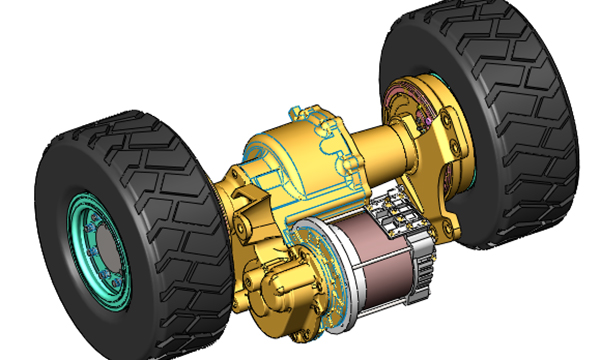

1. The integrated drive axle and gearbox structure ensures high transmission efficiency and low noise.

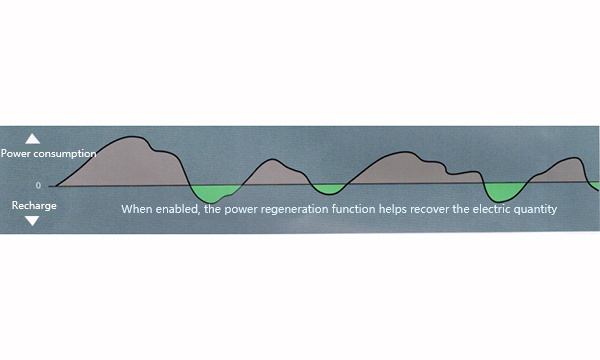

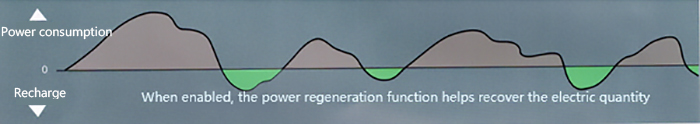

2. Power regeneration function prolongs the service time that it recovers the electric quantity of battery when the electric forklift is braking, slowing down or steering.

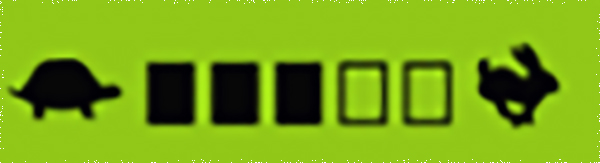

3. The fast, medium, and slow drive modes provides different speeds for various workspace and working distances.

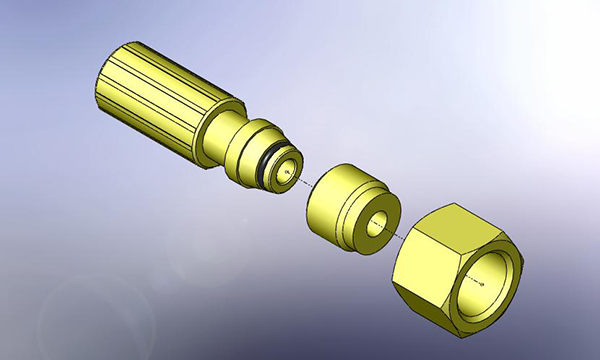

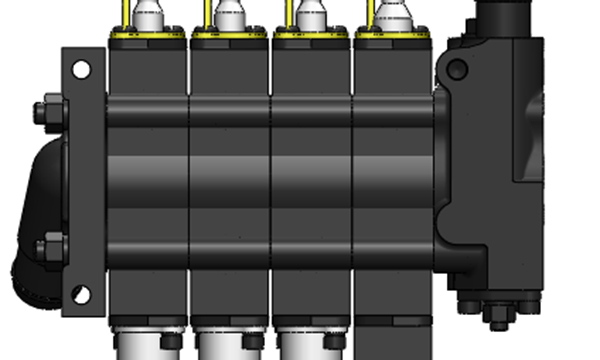

4. Hydraulic system uses 24° cone O-ring seal which provides reliable sealing and avoids leakage.
5. The drop lock mechanism can prevent the accidents caused by the driver's misoperations.
6. The shock absorber steering axle greatly reduces the vibration and makes the operating more comfortable.

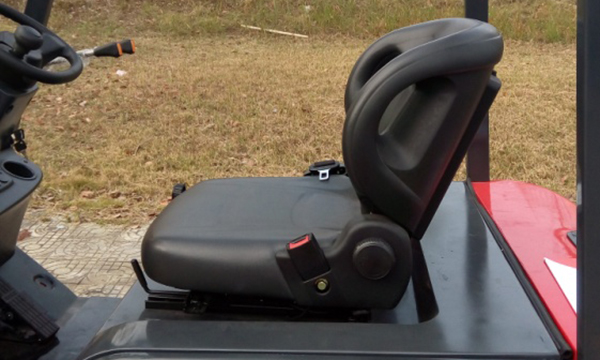

7. The suspension OPS seat with free back and forth movement and adjustable backrest angle provides a comfortable working environment for the driver. It has OPS power-off function which ensures the driver’s safety.
