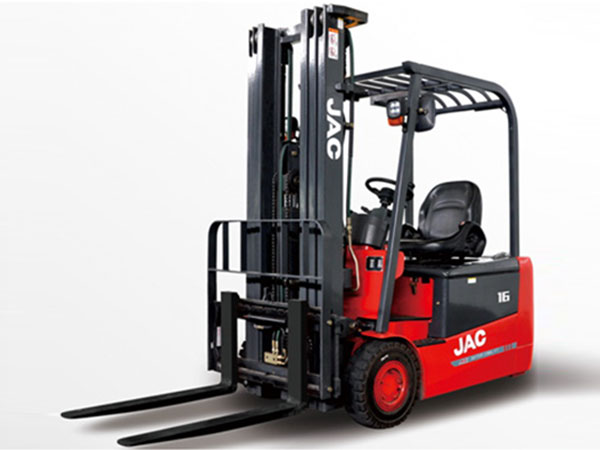

Electric Forklift
(1.6-2T 3-Wheel Counterbalance Battery Forklift)

  1. Home
  2. Products
  3. Electric Forklift
  4. Electric Forklift (1.6-2T 3-Wheel Counterbalance Battery Forklift)
Electric Forklift (1.6-2T 3-Wheel Counterbalance Battery Forklift)
Inquiry Form
Technical Parameters of the 3-Wheel Battery Forklift
Model CPD16SA3 CPD18SA3 CPD20SA3
Rated load kg 1600 1800 2000
Load center distance mm 500 500 500
Lift height mm 3000 3000 3000
Free lift height mm 150 150 150
Fork size L×W×T mm 1070×100×40 1070×122×40
Mast tilt angle FR/RR 。 6.5/6.5 6.5/6.5 6.5/6.5
Minimum turning radius mm 1550 1550 1680
Minimum right angle stacking aisle width mm 3070 3070 3220
Minimum ground clearance mm 102 102 100
Height of overhead guard mm 1960 1960 2020
Performance
Maximum travel speed 		Full load km/h 14 14 13

Maximum lift speed 		Full load mm/s 260 260 200
Maximum gradeability % 15 15 15
Dimensions Overall length Without forks mm 1930 1930 2080
Overall width mm 1066 1066 1156
Self weight Without load kg 3200 3260 3550
Battery Voltage/capacity V/Ah 48/500 48/500 48/560
Motor Traveling kW 4.8×2 4.8×2 4.8×2
Lifting kW 10 10 10
Way of control AC AC AC
Operating pressure Mpa 15.5 15.5 15.5
Maximum drawbar pull kN 18 18 14

Features

  • Features

    The lifting down cushion can reduce the impact to improve stability and safety.

  • Features

    Idling control system can prevent accidents caused by sudden start of the truck.

  • Features

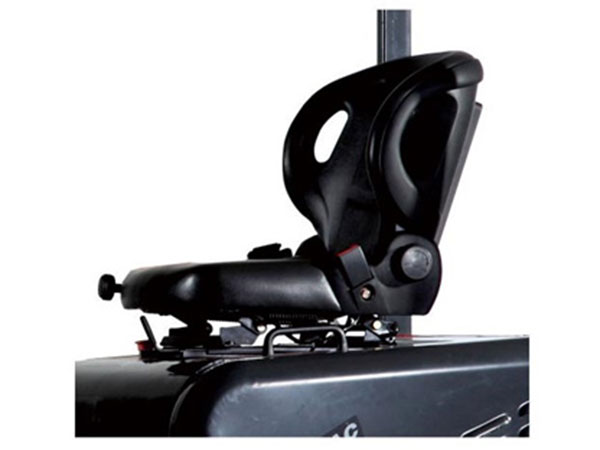

    When the driver leaves the OPS seat, the whole vehicle does not work, ensuring the safety of driver and vehicle. The shock absorption and well upholstered seat makes the driving more comfortable.

  • Features

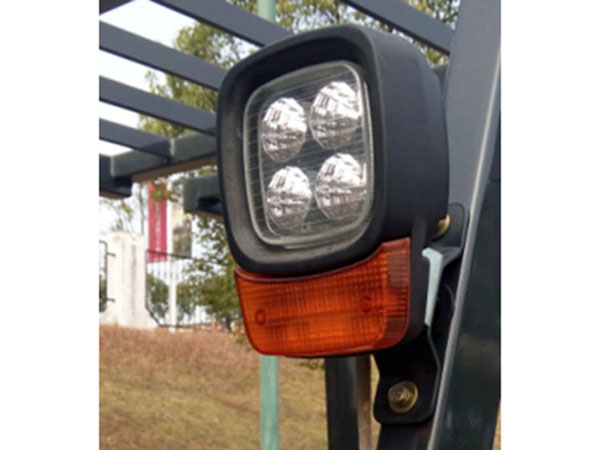

    The lift truck is equipped with LED lights with high brightness, featuring energy-saving and long lifespan.

  • Features

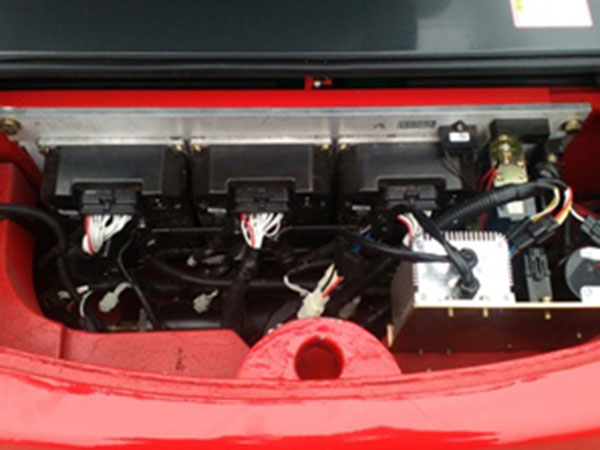

    High end control system and instruments enable stable performance and convenient maintenance.
