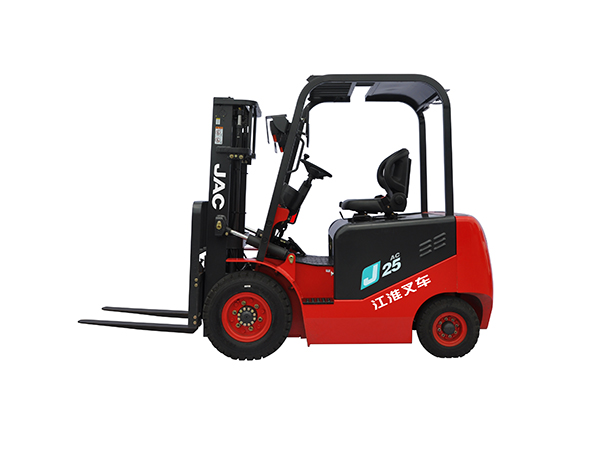

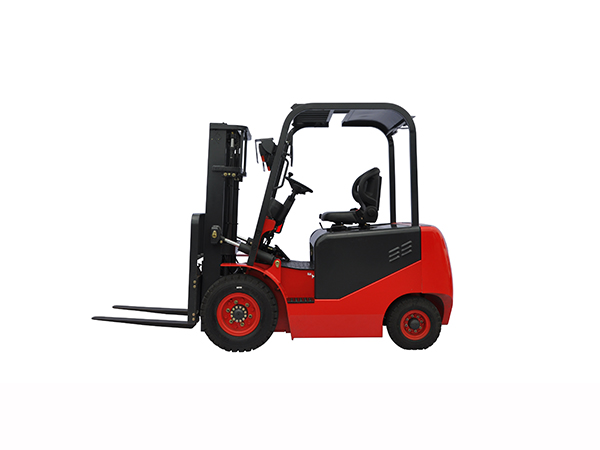

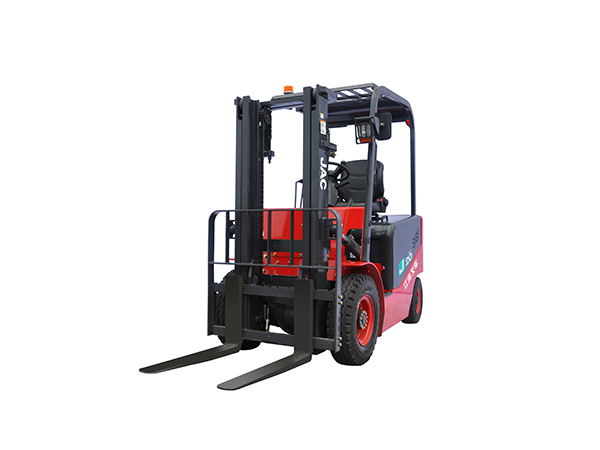

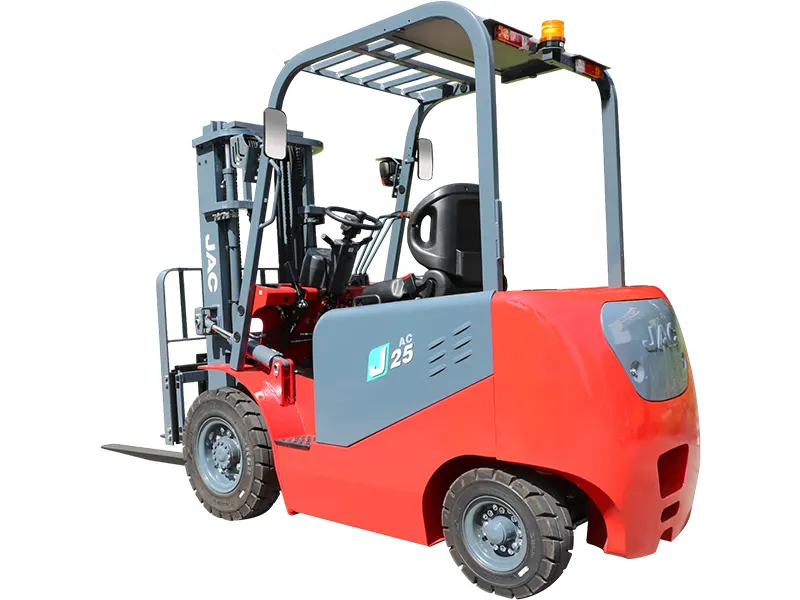

Electric Forklift (2-2.5T Four Wheel Forklift, J Series)
- Home
- Products
- Electric Forklift
- Electric Forklift (2-2.5T Four Wheel Forklift, J Series)
| Model | CPD20J | CPD25J | ||||
| Features | Power type | Battery | ||||
| Rated load（） | 2000 | 2500 | ||||
| Load center distance（mm） | 500 | |||||
| Lift height（mm） | 3000 | |||||
| Free lift height（mm） | 155 | |||||
| Fork size | L×W×T（mm） | 1070×122×40 | ||||
| Mast tilt angle | Front/Rear | 8°/10° | ||||
| Minimum turning radius（mm） | 2200 | |||||
| Minimum right angle stacking aisle width（mm） | 3865 | 3865 | ||||
| Minimum right angle aisle width（mm） | 2400 | |||||
| Minimum ground clearance（mm） | 110 | |||||
| Height of overhead guard（mm） | 2172 | |||||
| Height form seat to overhead guard（mm） | 990 | |||||
| Overhang (FR)（mm） | 465 | |||||
| Performance | Maximum travel speed | Full load（km/h） | 12 | |||
| No load（km/h） | 13 | |||||
| Maximum lift speed | Full load（mm/s） | 240 | 280 | 220 | 280 | |
| No load（mm/s） | 400 | |||||
| Maximum lowering speed | Full load（mm/s） | 430 | ||||
| No load（mm/s） | 460 | |||||
| Maximum gradeability（%） | 15 | 15 | 15 | 15 | ||
| Dimensions | Overall length | Without forks（mm） | 2410 | |||
| Overall width（mm） | 1163 | |||||
| Mast height at maximum lift (with backrest)（mm） | 4030 | |||||
| Mast lowered height（mm） | 1995 | |||||
| Power | Tires | Front wheel | 7.00-12-12PR | |||
| Rear wheel | 18×7-8-14PR | |||||
| Wheelbase（mm） | 1520 | |||||
| Tread | Front wheel/rear wheel（mm） | 973/960 | ||||
| Self weight | Without load（kg） | 3850 | 4190 | |||
| Battery | Voltage/capacity（V/Ah） | 48/600 | 48/630 | |||
| Motor | Traveling（KW） | 11.1 | ||||
| Lifting（KW） | 8.6 | 12 | 8.6 | 12 | ||
| Way of control | BC | AC | BC | AC | ||
| Operating pressure（Mpa） | 18.5 | |||||
| Maximum drawbar pull（KN） | 17 | |||||
Selling Points
1. Neutral gear safety system- Prevent the accidents that caused by accidential starting.

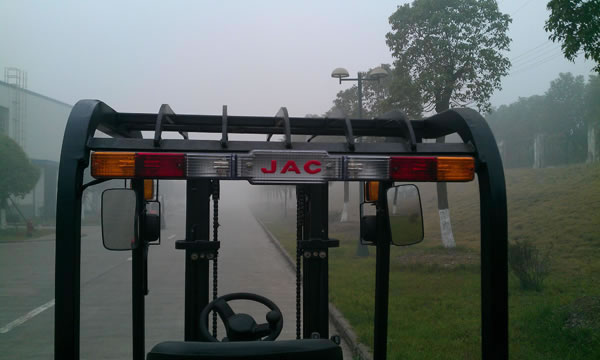

2. Attractive design of the taillight makes this 2-2.5T electric forklift quite safe for use.

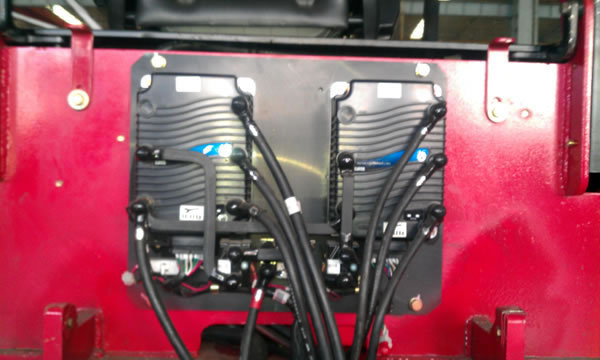

3. The imported CURTIS controller for the warehouse equipment is installed according to our patented technology to achieve outstanding heat dissipation effect.

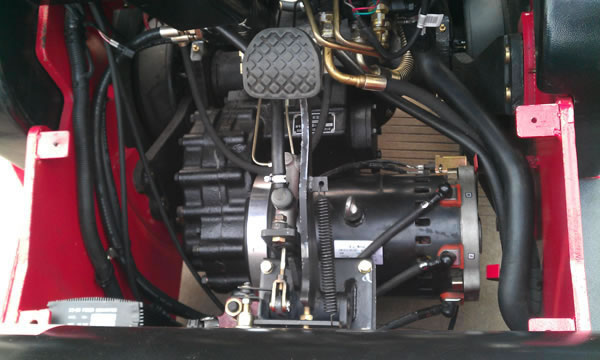

4. Thanks to the transverse type gearbox, the transmission efficiency and the working time of the battery are greatly improved.

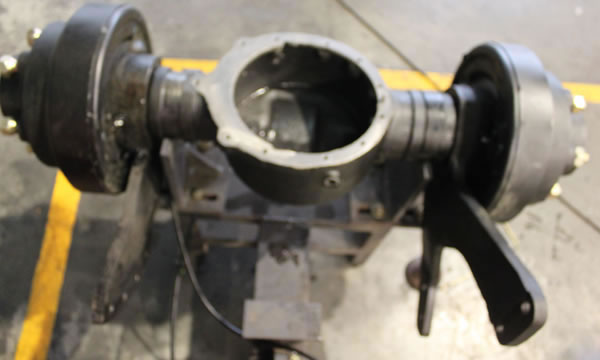

5. The plate-type drive axle, which is granted the national patent, can rotate at the angle of 360°, making the maintenance of the motor and the gearbox quite easier.

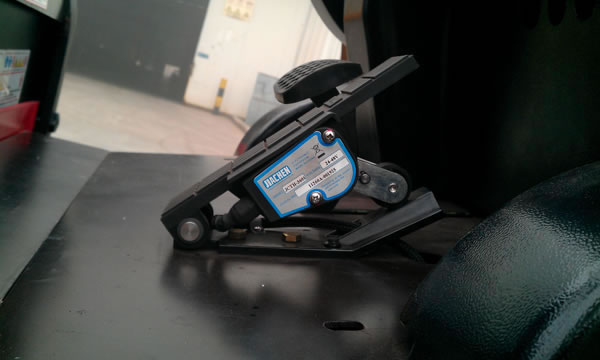

6. This range of electric forklift is installed with CURTIS accelerator. According to ergonomics, the foot brake pedal is designed slightly higher than the accelerator.

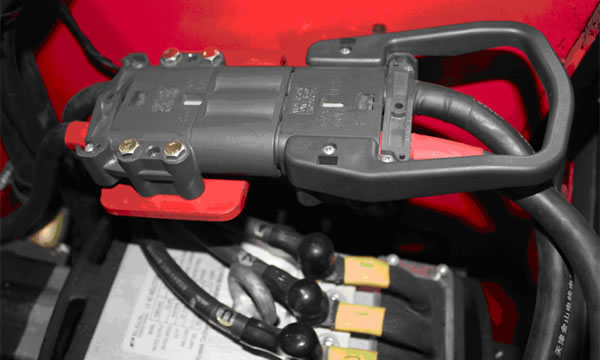

7. REMA power supply connector for convenient power connection
4. Hydraulic load-free induction steering gear and transverse oil cylinder steering system enable labour-saving operation. The steering axle is capable of affording 300,000 times fatigue test.
Information Related to Electric Forklift
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
