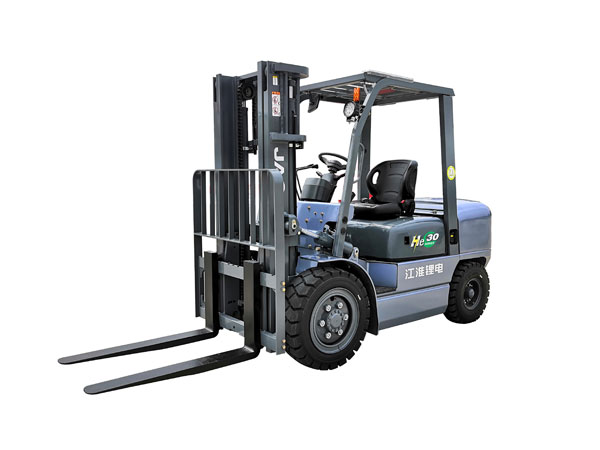

Electric Forklift (3-5T Four Wheel Forklift, HE Series)
Inquiry Form
Technical Parameters
Model   CPD30He CPD35He CPD38He CPD40He CPD45He CPD50He
156VVersatility Model- 156V
Power type   Lithium battery
Rated load kg 3000 3500 3800 4000 4500 5000
Load center distance mm 500 500 500 500 500
Lift height mm 3000 3000 3000 3000 3000
Free lift height mm 150 65 70 80 150
Fork size L×W×T mm 1070×125×45 1070×125×50 1070×150×50 1070×150×50
Mast tilt angle Front/Rear 。 8/10
Minimum turning radius mm 2550 2570 2585 2835 3190 3210
Minimum right angle stacking aisle width mm 4025 4045 4065 4325 4915 4935
Minimum right angle aisle width mm 2750 2770 2785 3035 2678 2698
Minimum ground clearance mm 140 172 212 180
Height of overhead guard mm 2090 2105 2140 2280
Height from seat to overhead guard mm 1000 980 945 950
Front overhang mm 475 485 495 490 547
Maximum travel speed Full load km/h 20 19 19 18
No load 20 20 18
Maximum lift speed Full load mm/s 470 420 380 370 350 330
No load 500 420 420 420 420 420
Maximum lowering speed Full load mm/s 460 360 500 480 440 450
No load 430 330 480 450 430 430
Overall length Without forks mm 2765 2810 2824 2950 3190
Overall width mm 1230 1255 1435 1480
Mast height at maximum lift (with backrest) mm 4260 4270
Standard mast height mm 2075 2125 2230
Tires Front wheel   28×9-15-14PR 250-15-16PR 250-15-16PR 300-15-20RP
Rear wheel   6.50-10-10PR 7.00-12-12PR 7.00-12-12RP
Wheelbase mm 1760 1900 2000
Tread Front wheel/rear wheel mm 1000/970 1015/970 1160/1048 1182/1202
Self weight Without load kg 4150 4550 4880 5340 6350 6720
Lithium battery Voltage V 156V
Capacity Maximum climbing ability of 15% Ah 165Ah / /
Maximum climbing ability of 20% 220Ah 220AH(18%)
Motor Traveling kW 18 20
Lifting kW 20 20
Way of motor control Permanent magnet
Operating pressure Mpa 18.5 19.5
Maximum drawbar pull kN 20 21 22 22 29 30

Features

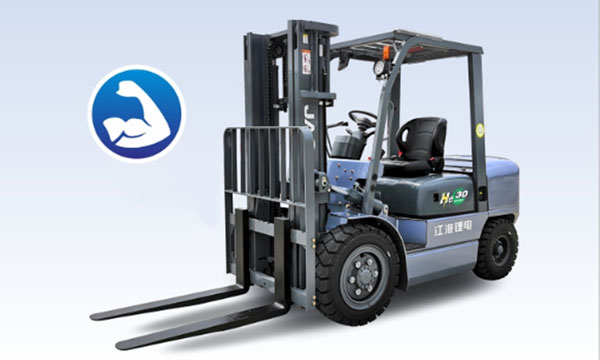

1. High strength truck body ensures high durability.

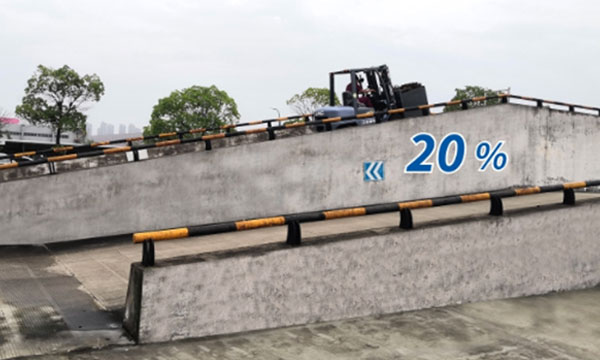

2. Maximum gradeability reaches up to 20% under full load.

Electric Forklift(4-6T Four Wheel Forklift, S Series)

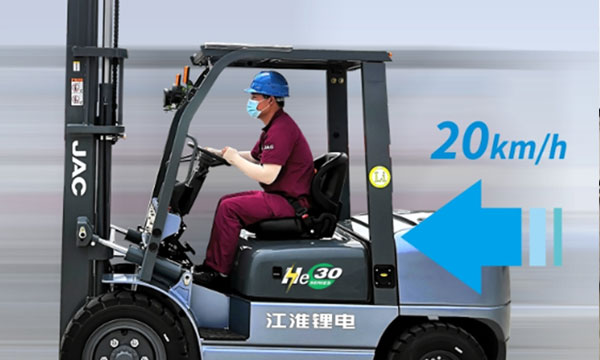

3. Maximum travel speed can be 20km/h under full load.

4. The parameters such as travel speed, lift speed can be freely adjusted.

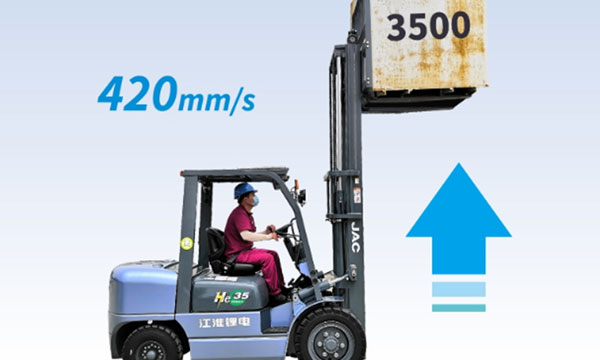

5. Lift speed: 340mm/s (standard type), 420mm/s (power type)

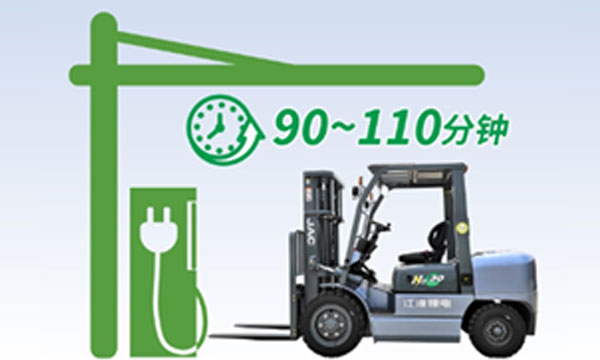

6. Charging time: 90-110 minutes (High power on-board charger can be optionally equipped to realize convenient charging.)

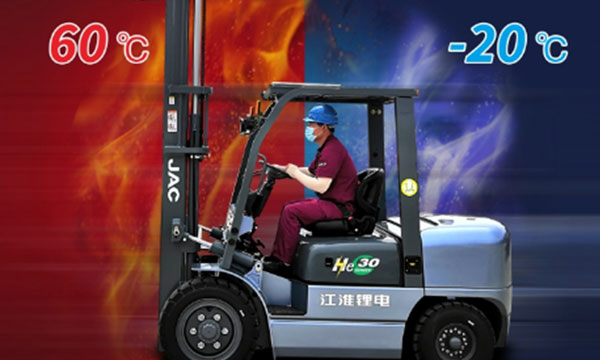

7. Working environment temperature: -20-60°C

8. The eco-friendly design of the diesel forklift offers full protection to both the user and the environment.
9. Small overall dimension, low centre of gravity, small turning radius, and excellent manoeuvrability.
10. The frame and the steering axle of the material handling equipment are engineered with shock absorber to reduce the impact and maximize the comfort during operation.
11. Multiple engines for selection.
