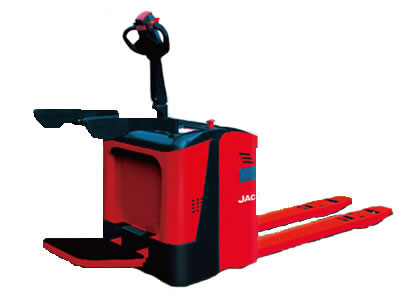

2T Electric Pallet Truck
- Home
- Products
- Electric Pallet Truck
- 2T Electric Pallet Truck
Specification of 2T Electric Pallet Truck
Model: CBD20R-II
Rated Load Capacity: 2000kg
Driving Mode: Standing
Max. Lifting Height: 202mm
Fork Size: 53×180×1100(1150/1220)mm
Features
1. The handle of the electric pallet truck is equipped with emergency switch.
2. The electricity quantity and the working hours can be displayed on the screen.
3. An emergency power-off switch is available with this electric stacker
4. Low-speed travel switch ensures high safety of the electric pallet.
5. Low battery protection device for the pallet lift truck prolongs the lifespan of the battery.
6. Canbus technology simplifies wiring system and increases reliability of the warehouse equipment.
7. Hall element reduces the abrasion and prolongs the service life of the component.
8. The drive axle is equipped with lubricating nozzle and sleeve.
9. Solid steel housing can be easily and conveniently opened for maintenance.
| Model | - | CBD20R-II |
| Drive mode | - | Electric |
| Operating type | - | Standing |
| Rated load capacity | Q(kg) | 2000 |
| Load centre distance | c(mm) | 600 |
| Front overhang | x(mm) | 815/865/935 |
| Tread | y(mm) | 1211/1261/1331 |
| Tyre | - | Polyurethane |
| Max. lifting height | h3(mm) | 202 |
| Height of tiller at the position for driving (min./max) | h14(mm) | 1150/1430 |
| Overall length | l1(mm) | 1710/1760/1830 |
| Overall width of electric pallet truck | b1(mm) | 775 |
| Fork size | s/e/l(mm) | 53×180×1100(1150/1220) |
| Outer width of fork | b5(mm) | 520/550/650/685 |
| Aisle width (Pallet 1000×1200 crossways) | Ast(mm) | 1910/1960/2030 |
| Aisle width (Pallet 800×1200 lengthways) | Ast(mm) | 2010/2010/2030 |
| Turning radius | Wa(mm) | 1550/1600/1670 |
| Travel speed (Full load/no load) | Km/h | 7/7.1 |
| Battery voltage/Nominal capacity K5 | V/Ah | 24/210 |
| Battery weight | kg | 170 |
| Service weight (With battery) | kg | 710 |
Information Related to 2T Electric Pallet Truck
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
