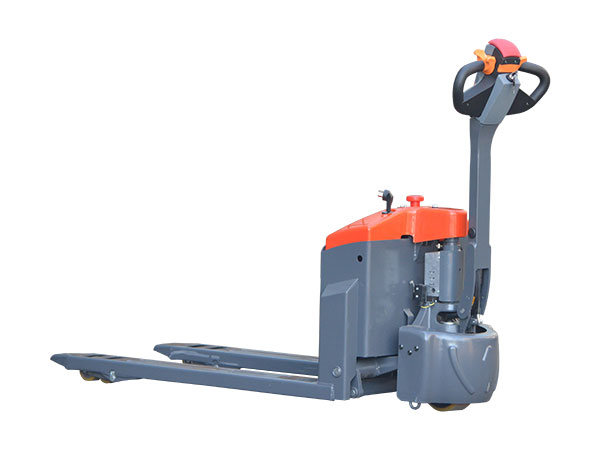

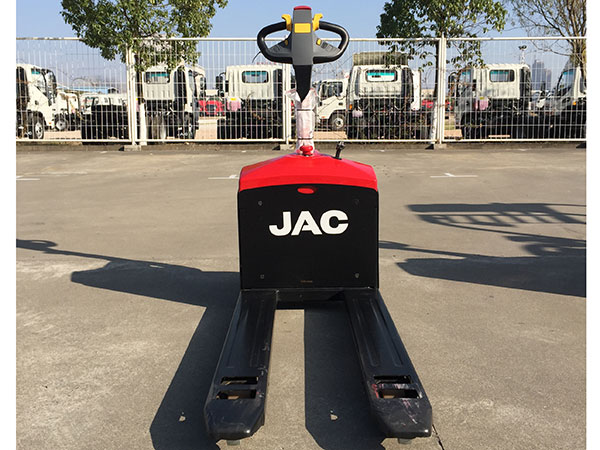

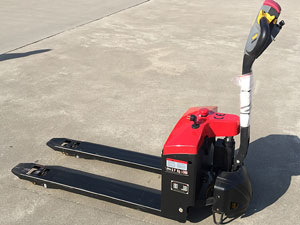

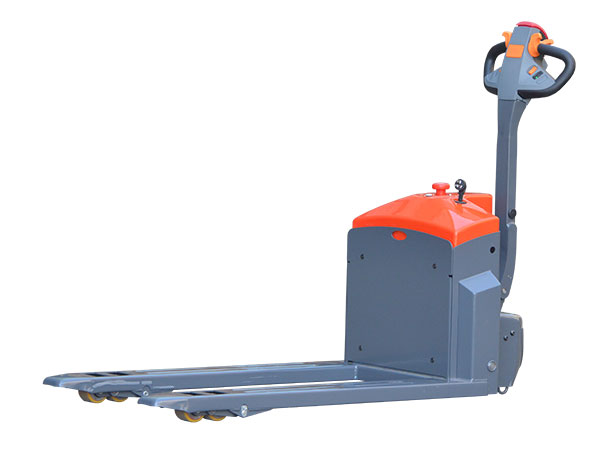

1.5T Walk Behind Electric Pallet Truck
- Home
- Products
- Electric Pallet Truck
- 1.5T Walk Behind Electric Pallet Truck
Features
1. The light weight design offers quicker, smoother control of travel speed and direction.
2. Small size and moderate outside turning radius ensure operating in limited space.
3. Easy access of the battery compartment simplifies charging, care and maintenance of the battery.
4. The high strength metal cover provides great protection to the engine and tire, and prevents the operator from hurting.
5. Built-in charger gives great convenience and prolongs the operating duration.
6. The DC drive system features a fast, intelligent and stable electronics system that is reliable and easy to maintain. In addition, the electromagnetic brake is designed to improve safety.
7. Our high performance control system features easy operation and maintenance, highlightened the whole usage process.
8. New variable hydraulic pumps increase productivity by enabling faster lifting speeds, at the same time lowering the consumption.
9. It has fewer connection points and cables so that the occurrence of error will be reduced.
| Manufacturer | Unit | JAC |
| Model | CBD15 Ⅲ | |
| Power type | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | kg | 1500 |
| Load centre | mm | 600 |
| Axle centre to fork face | mm | 875 |
| Wheel base | mm | 1202 |
| Service weight with battery | kg | 193/200 |
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ210×70 |
| Bearing wheel size | Φ×w(mm) | Φ80×60 |
| Number of front/rear wheel (x = drive wheel) | 4/1x | |
| Tread width | mm | 410/535 |
| Lift | mm | 200 |
| Overall height (with handle) | mm | 612/1195 |
| Lowered length | mm | 85 |
| Overall length | mm | 1628 |
| Length to fork face | mm | 478 |
| Overall width | mm | 560/685 |
| Fork dimensions | s/e/l (mm) | 50/150/1150 |
| Width of forks | mm | 560/685 |
| Min. ground clearance | mm | 35 |
| Aisle width with pallet 1000 x 1200 across forks | mm | 1828 |
| Aisle width with pallet 800 x 1200 along forks | mm | 1878 |
| Min. turning radius | mm | 1352 |
| Travel speed, laden/unladen | km/h | 4.2/4.5 |
| Max. lifting speed, laden/unladen | mm/s | 22/25 |
| Lowering speed, laden/unladen | mm/s | 38/28 |
| Maximum climbing ability, with/without load | % | 6/10 |
| Service brake | Electromagnetic braking | |
| Drive motor, 60 minute rating | kW | 0.75 |
| Lift motor rating at S3 15% | kW | 0.8 |
| Battery according to DIN 43531/35/36 A, B, C, no | no | |
| Battery voltage/rated capacity | V/Ah | 2×12/65 |
| Battery weight (± 5%) | kg | 40 |
| Type of drive control | DC power | |
| Noise level at operator's ear | dB(A) | 67 |
| Steering type | Mechanical steering |
