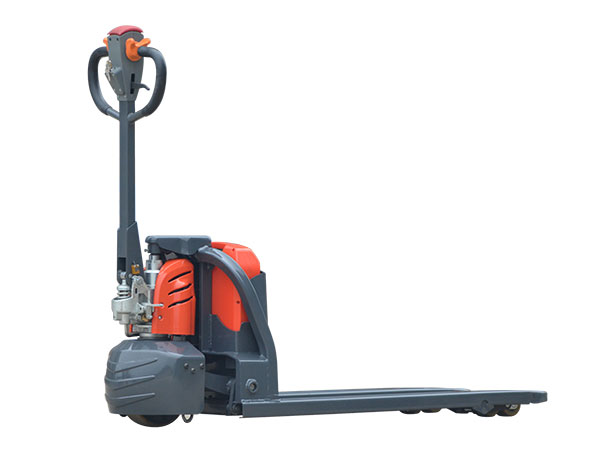

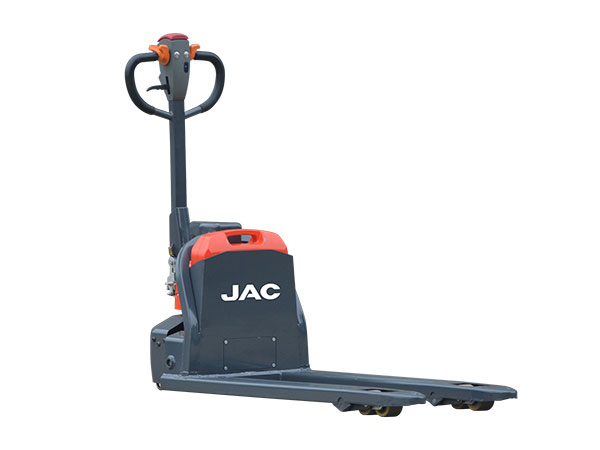

1.5/1.8/2.0T Lithium Battery Pallet Truck
Inquiry Form

Features
1. With small turning radius and well-designed structure, the pallet truck is suitable for use in limited space, providing operations with low noise and high efficiency.
2. The flexible design ensures light weight without sacrificing any stability. Users can easily maintain and repair due to the open structure.
3. Battery replacement is fast so that the operation wouldn't be interrupted by using optional battery.
4. The collision avoidance design and electromagnetic brake provide considerable protection.
5. The operating handle enables excellent lifting performance to save the effort and make the operation easy.
6. The engine and wheels are well-protected by the cover to give protection to both the machine and the operator.

Technical Parameters of the Lithium Battery Pallet Truck
Manufacturer Unit JAC
Model CBD15Li CBD18Li CBD20Li
Power type Electric
Operation Pedestrian
Rated traction weight kg 1500 1800 2000
Load centre mm 600 600 600
Axle centre to fork face mm 944 944 944
Wheel base mm 1243 1243 1243
Service weight with battery kg 142 142 146
Wheels type PU
Driving wheel size Φ×w(mm) Φ210×70 Φ210×70 Φ210×70
Bearing wheel size Φ×w(mm) Φ80×60 Φ80×60 Φ80×60
Numbers of front/rear wheels (x = driving wheel) 1x/4 1x/4 1x/4
Tread width mm 400/535 400/535 400/535
Lift mm 200 200 200
Overall height (with handle) mm 740/1160 740/1160 740/1160
Lowered length mm 85 85 85
Overall length mm 1603 1603 1603
Length to fork face mm 453 453 453
Overall width mm 550/685 550/685 550/685
Fork dimensions s/e/l (mm) 50/150/1150 50/150/1150 50/150/1150
Width of forks mm 550/685 550/685 550/685
Min. ground clearance mm 35 35 35
Aisle width with pallet 1000 x 1200 across forks mm 1804 1804 1804
Aisle width with pallet 800 x 1200 along forks mm 1854 1854 1854
Min. turning radius mm 1398 1398 1398
Travel speed, laden/unladen km/h 4.2/4.5 4.2/4.5 4.2/4.5
Maximum climbing ability, with/without load % 5/10 5/10 5/10
Service brake Electromagnetic braking
Drive motor, 60 minute rating kW 0.75 0.75 0.75
Lift motor rating at S3 15% kW 0.8 0.8 0.8
Battery voltage/rated capacity V/Ah 24/20 24/30 24/40 24/60 24/20 24/30 24/40 24/60 48/20 48/30
Battery weight (± 5%) kg 6 7.8 10.2 13.2 6 7.8 10.2 13.2 10.2 13.2
Type of drive control DC power
Noise level at operator's ear dB(A) ≤70
Steering type Mechanical steering
