Technical Parameters
Model CPD20Je CPD30Je
Features Power type Battery
Rated load kg 2000 2500
Load center distance mm 500 500
Lift height mm 3000 3000
Free lift height mm 120 160
Fork size L×W×T mm 1070×100×40 1070×125×45
Mast tilt angle FR/RR 。 6/10 8/10
Minimum turning radius mm 2135 2497
Minimum right angle stacking aisle width mm 3542 4181
Minimum right angle aisle width mm 2335 2609
Minimum ground clearance mm 93 120
Height of overhead guard mm 2132 2180
Height form seat to overhead guard mm 1020 980
Overhang (FR) mm 407 475
Performance
Maximum travel speed 		Full load km/h 12 12
No load km/h 13 12

Maximum lift speed 		Full load mm/s 240 240
No load mm/s 400 380

Maximum lowering speed 		Full load mm/s 460 400
No load（mm/s） mm/s 430 460
Maximum gradeability % 15
Dimensions Overall length Without forks mm 2320 2609
Overall width mm 1072 1250
Mast height at maximum lift (with backrest) mm 3930 4260
Mast lowered height mm 1990 2065
Power Tires Front wheel 23×9-10-18PR
Rear wheel 18×7-8-14PR
Wheelbase mm 1470 1700
Tread Front wheel/rear wheel mm 894/920 1000/990
Truck weight Without load kg 3220 4550
Battery Voltage/capacity V/Ah 48/600 48/630
Motor Traveling KW 8 11.5
Lifting KW 8.6/10 15
Way of control BC/AC AC/BC
Operating pressure Mpa 15.5 18.5
Maximum drawbar pull KN 13 21
*The parameters are subject to change without notice.

Features

1. High operation performance

Continuous working time – 8-10 hours Energy regeneration function – Regenerative energy can be fed back to the battery during braking, slow down and steering, so that the battery can be used for a longer period of time.
Automatic power-off – Neutral gear stays more than 5 seconds when the forklift truck stops running, the electric motor will automatically shut off, resulting in reduced power consumption.
Forklift truck with high strength and low center of gravity – With integrated design, the forklift frame features high bearing capacity. (Patent number: ZL201220133447.2)

2. High safety and reliability

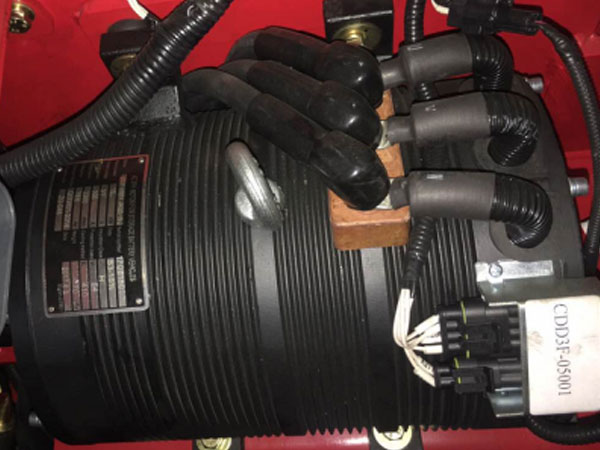

High waterproof performance - Totally enclosed motor, IP54 rating

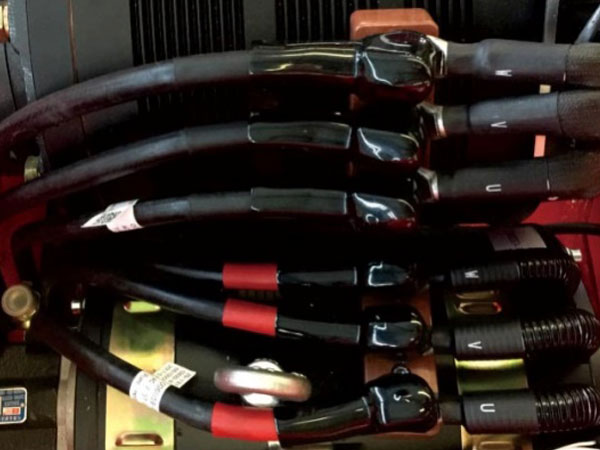

High insulation performance – Electrical end caps are used, providing reliable protection from environmental damage.

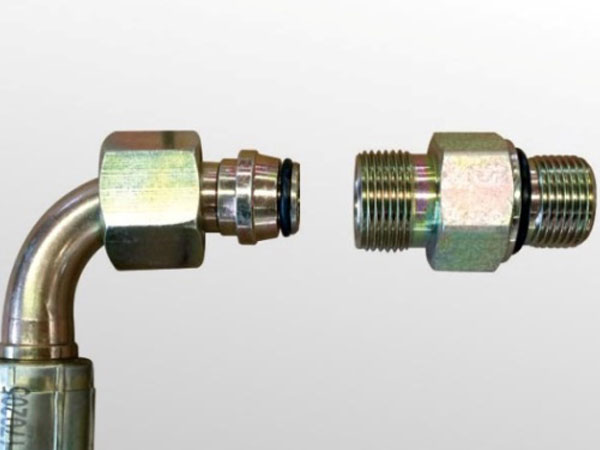

Optimum sealing performance - The hydraulic system adopts 24˚ Cone with O-ring, ensuring reliable sealing.
Mast buffering function – Buffering design efficiently protects cargo safety during goods lifting and lowering to the ground.
Neutral gear safety system – This system effectively prevents accidents caused by accidental start of the lift truck.
3.Maximum comfort during driving

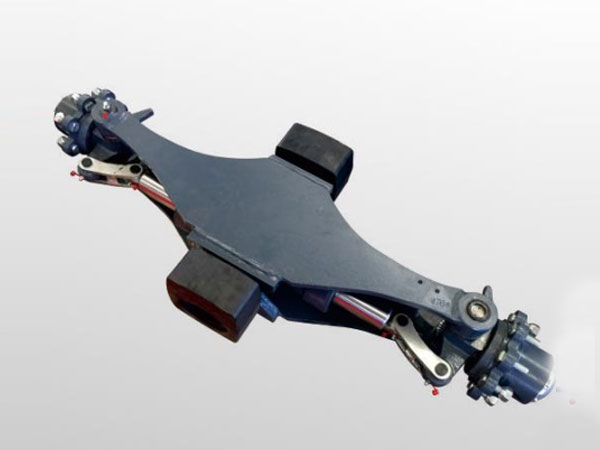

Forklift steering axle for vibration reduction – It effectively controls operator shock and vibration during running.

High waterproof performance - Totally enclosed motor, IP54 rating
4.Easy operation and maintenance

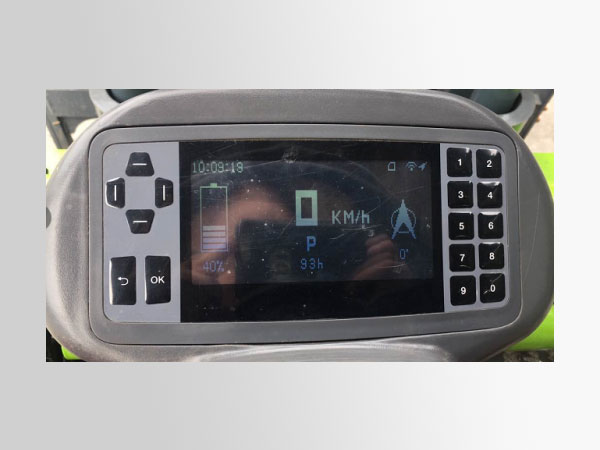

Easy read forklift instrument panel – It clearly displays the status of forklift performance for easy operation and maintenance.

High waterproof performance - Totally enclosed motor, IP54 rating

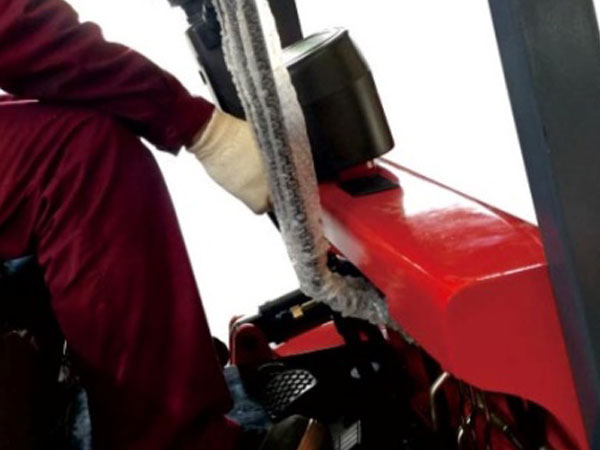

5. Directional control valve is connected with galvanized steel tube instead of hose, causing no damage to the tubing during ascending battery. Steel plate is used for protecting cable, pipe and tubing.
