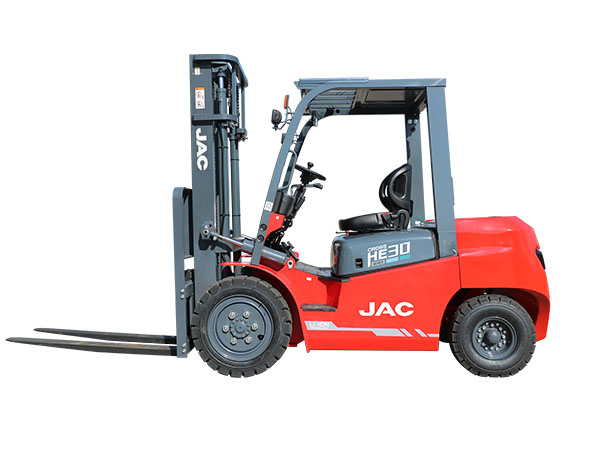

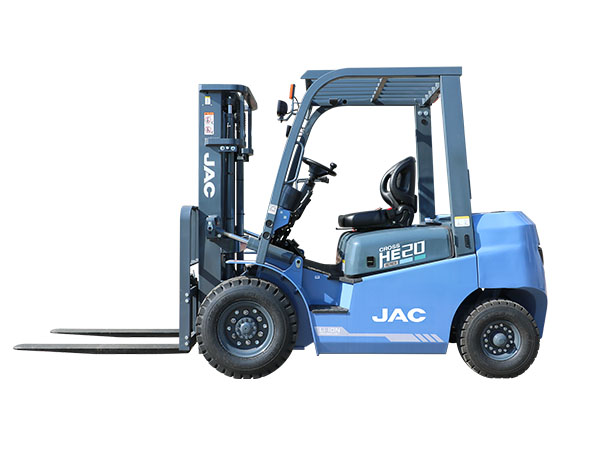

Electric Forklift 2-3.5T
Inquiry Form
Technical Parameters of 2-3.5T Four Wheel Forklift
Model Unit CPD20H3 CPD25H3 CPD30H3 CPD30H3 CPD35H3 CPD2OH3 CPD25H3 CPD30H3 CPD35H3 CPD30H3 CPD35H3
HEcross AIR-80V HEcross PRO-80V HEcross PRO-115V HEcross PRO-156V
Features Power type   Lithium battery Lithium battery Lithium battery
Rated load kg 2000 2500 3000 3000 3500 2000 2500 3000 3500 3000 3500
Load center distance mm 500 500 500
Lift height mm 3000 3000 3000
Performance Max. travel speed Full load km/h 14 14 14 14 14 15 15 20 20
No load 15 15 15 15 15 15 15 20 20
Max. lift speed Full load mm/s 300 300 280 300 280 310 280 470 420
No loa 400 400 400 400 400 380 350 500 420
Dimensions Overall length Without forks mm 2540 2709 2724 2540 2709 2724 2709 2724
Mast height at maximum lift (with backrest) mm 4030 4260 4030 4260 4260
Mast lowered height mm 1995 2075 1995 2075 2075
Others Wheelbase mm 1665 1760 1665 1760 1760
Self weight Without load kg 3360 3730 4180 4360 4760 3340 3710 4120 4560 4100 4620
Battery Voltage V 80 115V 156V
Capacity Maximum gradeability is 15
% 		Ah 150Ah 175Ah 230Ah 125Ah 173Ah 165Ah
Motor Travel KW 11 11 16.6 15 15 20
Lift KW 12 15 13.5 15 15 20

Features

1. Appearance and Performance Upgrade

1) Lower center of gravity counterweight, achieving a stability factor of 1.53.

2) The body length is reduced by 50-85mm, resulting in a smaller turning radius.

An AC asynchronous aluminum shell motor

3) An AC asynchronous aluminum shell motor is adopted, improving heat dissipation performance by 10%.

4) The high-speed ratio gearbox allows for an increment of driving speed by 15%, an enhancement of full-load lifting speed by 6%, and an improved climbing capability by 15%.

2. Configuration Upgrade

1) Standard battery heating for the entire series ensures a worry-free operation in cold weather.

2) Standard dual pedals are more in line with the traditional driving habits.

3) 2-2.5T forklifts can be equipped with 150-350AH batteries; 3-3.5T forklifts can be equipped with 175-460AH batteries, providing longer battery life.

4) Optional 450A controller allows for easy operation of the boarding bridge.

3. Safety Upgrade

1) Vehicle-level rain and water immersion testing guarantee the inlet connectors with excellent waterproof performance.

2) Lithium battery comes with a protection rating of IP65, ensuring safety and reliability.

3) The outer cover of the charging port is equipped with magnetic attraction and rubber sealing strips to prevent the rainwater from entering.

4) The REMA plug is wrapped with heat shrink tubing to prevent the rainwater from flowing back along the cable.

5) Card swipe start, OPS descent lock.

6) The forklift will automatically enter sleep mode after 30 minutes of inactivity, ensuring enhanced safety and energy efficiency.

7) Connect your phone via Bluetooth to adjust performance parameters and for easier maintenance.
8) Optional vehicle networking system allows for remote monitoring, locking, and parameter adjustment, making vehicle management more convenient.

4. Comfort:

1) Convenient and practical design for water cup and phone compartments.

2) Optional USB port keeps your phone fully charged at all times.

3) Added rear wheel mudguards ensures the battery compartment cleaner.

4) Forward-leaning design of the engine hood prevents water accumulation.

5) New-style steering column locking mechanism allows for easier adjustment.
