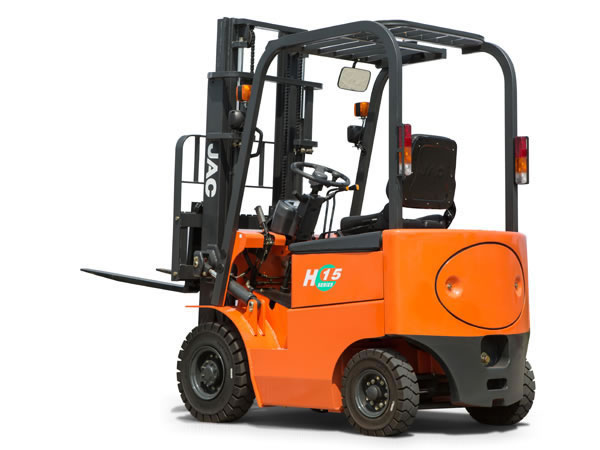

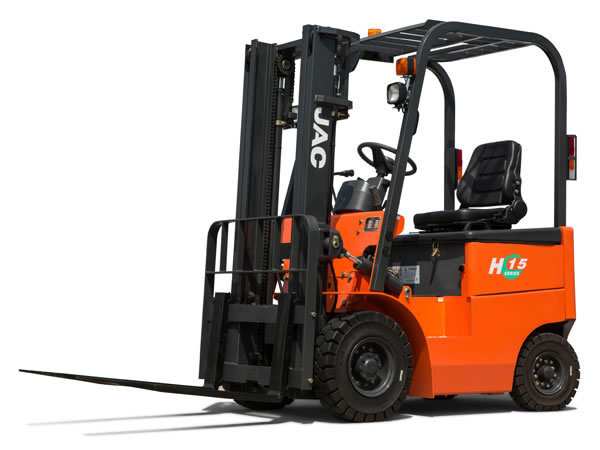

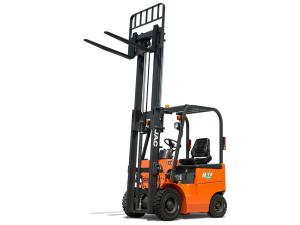

Electric Forklift (1-1.8T Four Wheel Forklift, H Series)
Inquiry Form
Specifications of Electric Forklift
Model CPD10H, CPD15H, CPD18H
Rated Load Capacity 1000kg, 1500kg, 1800kg
Motor DC/AC+DC/AC
Controller USA CURTIS
Battery capacity 48V/600AH 48V/630AH
Standard Mast 2-stage mast (3m)
Container Mast (Optional) 2-stage or 3-stage full free mast (3m-6m)
Tyre Pneumatic tyre (Standard), solid tyre (Optional)
Side Shifter (Optional) Integrated type side shifter, CASCADE side shifter

Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year

Selling Point

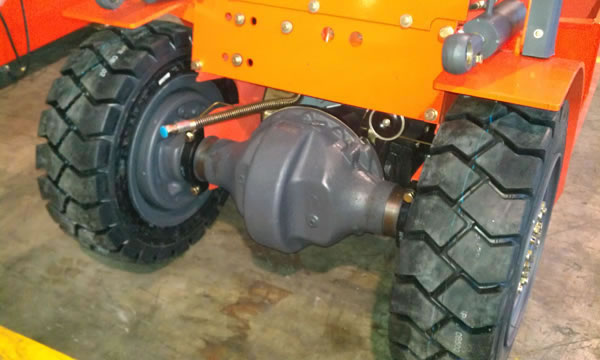

1. The electric forklift of H series employs asymmetric drive axle, to leave enough space for the installation of the travel motor. So, the motor replacement and maintenance can be completed easily, without troublesome dismantling of the gear box and drive axle. This design has been granted the national patent.

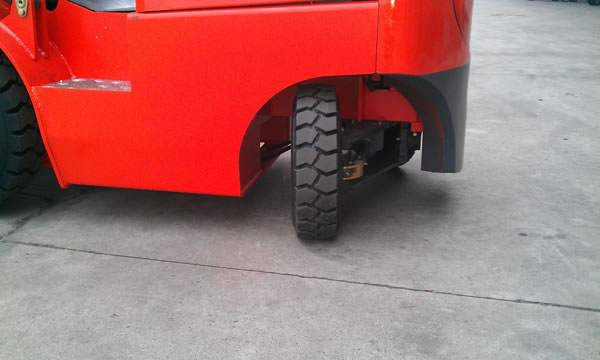

2. The steering axle of the 1-1.8T four wheel forklift offers big turning angle to reduce the turning radius and enhance the trafficability of the electric forklift. The patented technology makes this product quite popular.

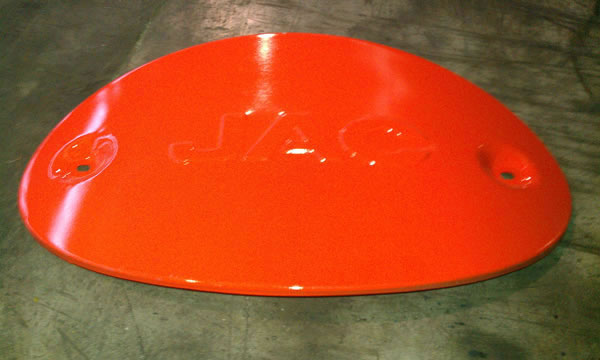

3. Iron cover for the balance weight of the electric forklift has high strength and good resistance to crush.

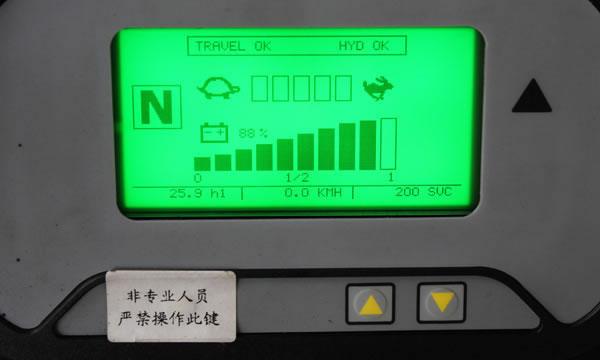

4. Thanks to the LCD instrument panel with good resistance to water and vibration from CURTIS, the important information can be displayed on the screen completely, enabling the user to understand the working conditions of the material handling equipment timely and precisely.

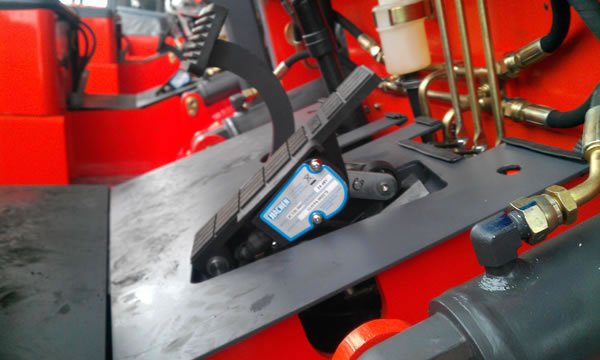

5. This range of product is installed with CURTIS accelerator. According to ergonomics, the foot brake pedal is designed slightly higher than the accelerator.

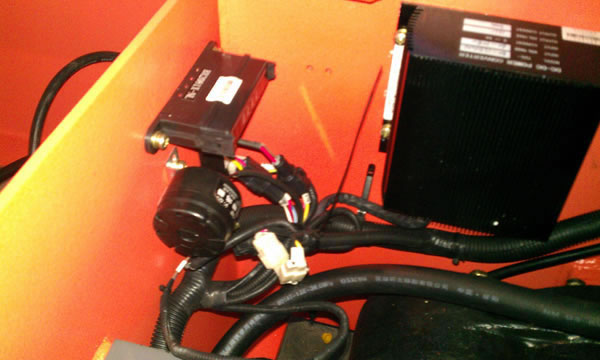

6. Imported AMP connector to ensure high reliability of the electrical circuit.

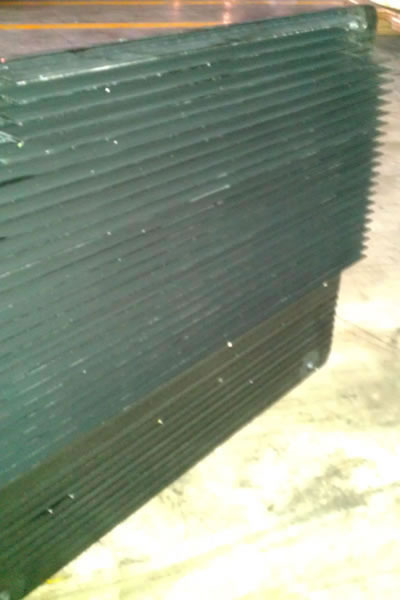

7. Making full use of space, we maximize the size of the fins to achieve optimal heat dissipation effect.

Technical Parameters of Electric Forklift
Model Unit CPD10H CPD15H CPD18H
Load Capacity Kg 1000 1500 1800
Load Center mm 500 500 500
Mast Lifting height mm 3000 3000 3000
Mast Free Lift mm 125 125 125
Mast Lifting Speed (With Load) mm/s 300 300 300
Mast Tilting Angle (Front/Rear ) 6°/ 12° 6°/ 12° 6°/ 12°
Driving Speed km/h 14 14 14
Turning Radius mm 1800 1855 1900
Ground Clearance mm 110 110 110
External Dimension Length to face of forks mm 1992 2027 2102
Overall width mm 1070 1070 1070
Height of overhead guard (cabin) mm 2080 2080 2080
Height of mast, extended mm 4030 4030 4030
Wheelbase mm 1250 1250 1250
Tread Front mm 890 890 890
Rear mm 920 1920 920
Overhang (front) mm 410 410 410
Fork mm 1070 1070 1070
Service Weight kg 2840 2960 3100
