1000kg Electric Stacker

  1. Home
  2. Products
  3. Electric Stacker
  4. 1000kg Electric Stacker

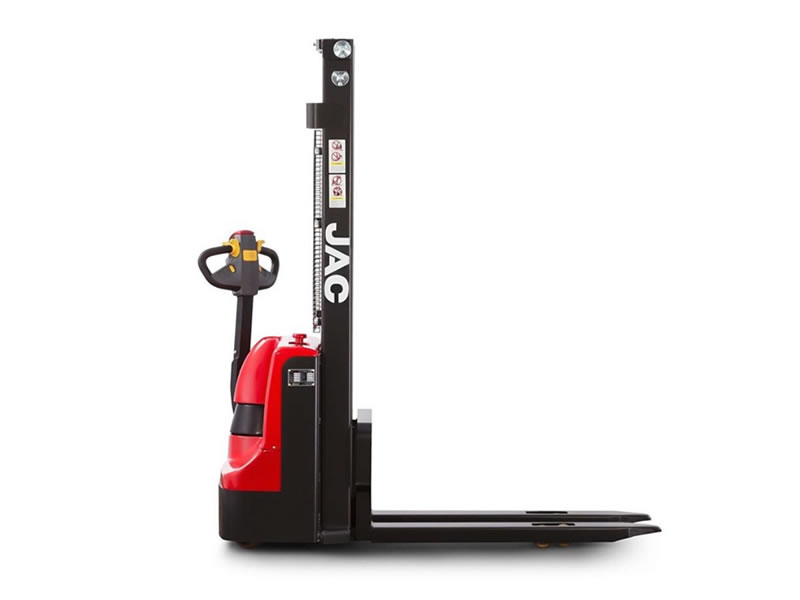

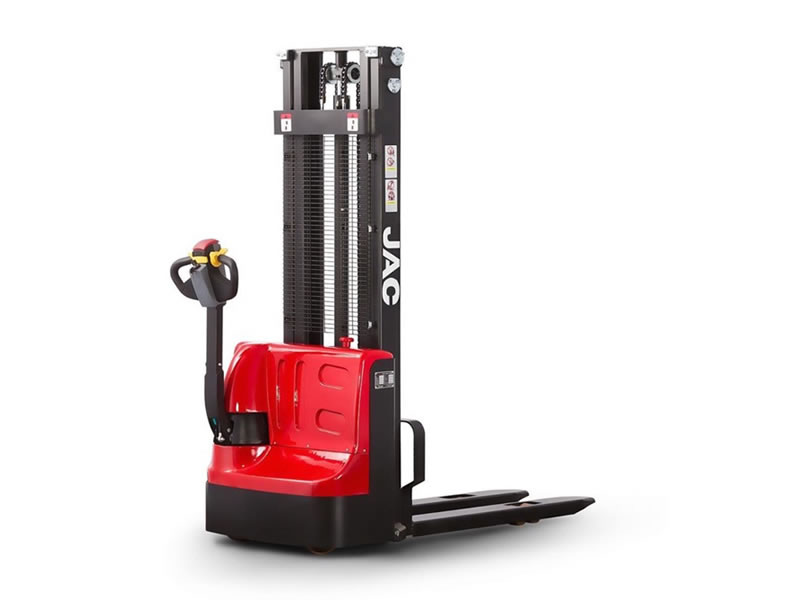

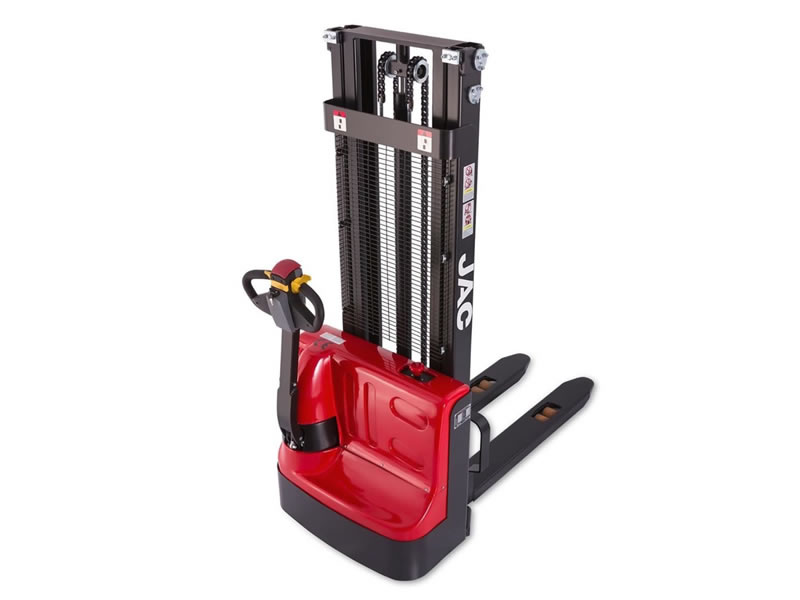

The electric stacker is designed with a maximum load capacity of 1000kg. The stacker features delicate appearance, flexible operation, high productivity, great maneuverability, high economic efficiency and environmental protection, ideal for goods transportation and stacking at low frequency, at low intensity and over short distances. The pallet stacker is perfect for use in most goods turnover and freight handling applications.

Features
1.Flexible side stance operator platform, wide-view mast and tighter turning radius improve the ability to fit into tighter spaces for greater narrow aisle capability.

2.Ergonomically lengthened control handle provides operator with comfort and precise load control.

3.The walkie pallet jack is equipped with large-power high-performance lift pump, delivering efficient and stable lifting and lowering functionalities.

4.Lift control buttons on both sides of the handle allow easy access from either side of the riding pallet jack platform.

5.Crawl speed button on the operating handle provides precise controllability and superior maneuverability at a slower speed.

6.The handle features a return spring which can automatically restore the handle to its vertical position, enhancing durability.

7.Battery discharge LED indicator clearly displays the state of charge in four colors—green, blue, orange and red.

8.Key switch and battery discharge indicator are integrated in the handle for ease of operations.

9.External charger provides better heat dissipation performance and eliminates the risk of battery damage caused by stacker bump and vibration.

10.Original Germany waterproof microswitch offers excellent protection against dust, humidity and low temperature, ideal for harsh working environments.

11.Permanent magnet motor drive system features small volume, light weight, low energy loss and high working efficiency.

12.High-density welded wire mesh is sturdy and durable, offering excellent protection effects.

13.Reinforcing ribs are set between internal and external gantries to improve the sturdiness of walkie pallet jack and prevent the gantry from toppling over due to load lifting.

14.The electric stacker features auto power-off braking function—when you release or press the handle, the stacker will automatically stop and brake, to improve the safety and reliability for conditions that stacker is travelling on ramps or out of control.

Technical Parameters of Electric Stacker
Characteristics Manufacturer Unit JAC
Model CDD10
Power unit electric
Operation pedestrian
Rated traction weight kg 1000
Load center distance mm 600
Weights Service weight kg 384 437 451 465 510 540
Wheels Wheels type
PU
Dimensions The max. lifting height mm 1600 2000 2500 3000 3500 4000
Load capacity on Max. height kg 1000 900 800 700 500 300
Extended mast height mm 2014 2451 2924 3424 3924 4147
Lowered mast height mm 2014 1494 1744 1994 2245 2495
Lowered fork height mm 86
Overall length mm 1755
Overall width mm 795
Overall fork width mm 570/695
Fork length mm 1150
Single fork width mm 160
Aisle width for pallets 1000×1200 cross ways mm 2074
Aisle width for pallets 800×1200 length ways mm 2040
Turning radius mm 1336
Fixed leg length mm 928
Single fixed leg width mm 124
Outside width between fixed legs mm 534/659
Performance Travel speed, laden/unladen km/h 4.0/4.2
Lifting speed, with/without load mm/s 92/136
Service brake electromagnetic braking
Drive Drive motor, 60 minute rating kW 0.75
Lift motor rating at S3 15% kW 2.2
Battery according to DIN 43531/35/36 A, B, C, no no
Battery voltage V/Ah 2×12V/100AH
Others Type of drive control DC power
Noise level at operator's ear dB(A) 69
Steering type Mechanical steering
