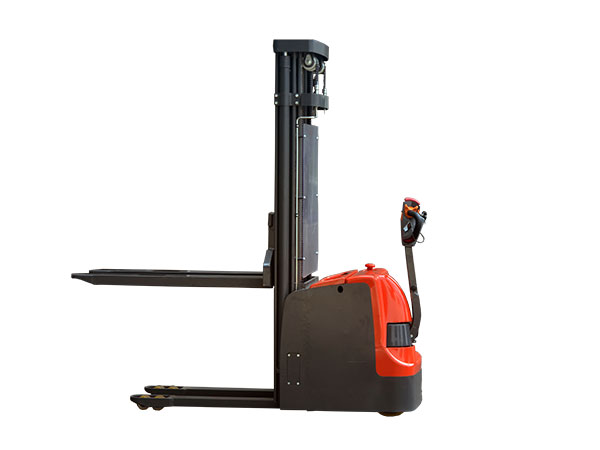

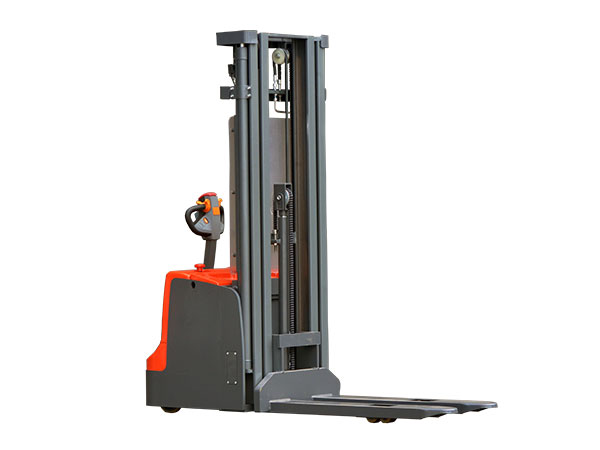

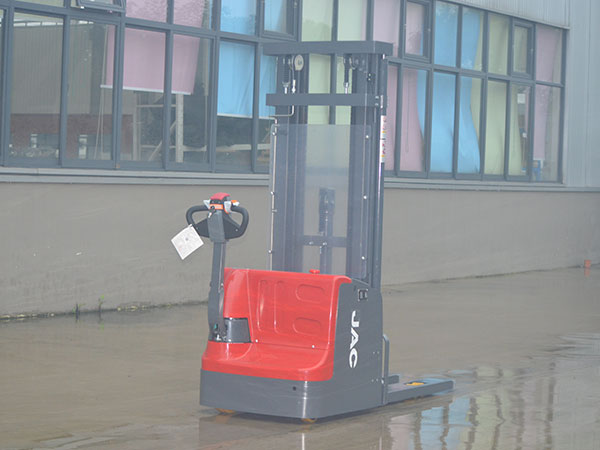

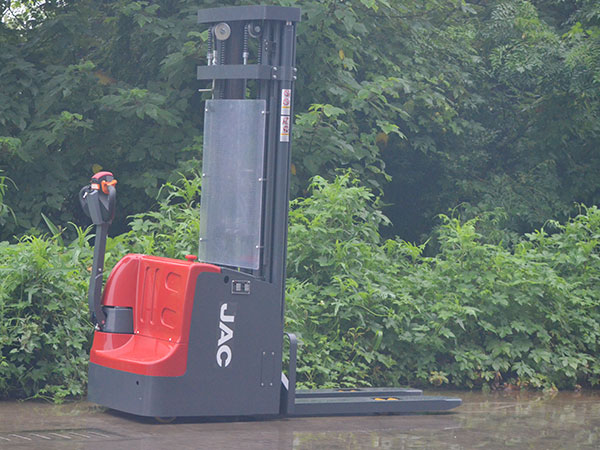

1.5-2T Walkie Electric stacker (Strengthen model)
Inquiry Form
Features

1. High torque, brushless AC drive system and ZF gearbox can boost the accelerating performance, enhancing the productivity and saving your energy.
2. The transistor drive control system (MOSFET) can operate at a high efficiency and at a low noise, and also supports programmable neutral speed reduction and electric disc brake.
3. The German ergonomically angled hand grips can work in harsh environments like cold, moisty or dusty without harming the operation stability.
4. The multifunction control handle provides fingertip control and brings the operator more convenience.
5. The four-color coulombmeter is designed with green, blue, orange and red display, which provides clear visualization of the residual energy.
6. The operating handle is integrated with high quality air spring, once loosen the handle, reset slowly and automatically.
7. The one-step slowing down function will provide quick speed switch to make your drive safer and more convenient.
8. The operating handle with up and down button on both sides can make the control easy and fast.
9. The operating handle with ergonomics-design can provide safe and comfortable driving experience to the operator.
10. The “Pinwheel” capability for right angle stacking will save the operating space and reduce turning radius for better vision, which makes it more convenient for operation in limited space.
11. The Walkie electric stacker comes with power-off braking function. The stacker is braked once the handle is loosened or pressed to the bottom, which makes it safe to operate on slope to avoid losing control.

Technical Parameters of the Walkie Electric Stacker
Model CDD15 CDD15 CDD15 CDD15 CDD20
Power type Electric Electric Electric Electric Electric
Operation Walking Walking Walking Walking Walking
Rated traction weight kg 1500 1500 1500 1500 2000
Load centre mm 600 600 600 600 600
Axle centre to fork face mm 672 672 672 672 672
Wheelbase mm 1384 1384 1384 1384 1384
Service weight with battery kg 966 1001 1068 1126 966
Wheels type PU PU PU PU PU
Driving wheel size Φ×w(mm) Φ230×70 Φ230×70 Φ230×70 Φ230×70 Φ230×70
Bearing wheel size Φ×w(mm) Φ80×70 Φ80×70 Φ80×70 Φ80×70 Φ80×70
Balance wheel size Φ×w(mm) Φ150×58 Φ150×58 Φ150×58 Φ150×58 Φ150×58
Number of front/rear wheel (x = driving wheel) 1x+1/4 1x+1/4 1x+1/4 1x+1/4 1x+1/4
Tread width (drive end) mm 526 526 526 526 526
Tread width (load end) mm 390/515 390/515 390/515 390/515 390/515
Max. lowered mast height mm 1991 2291 1767 2100 1991
Free lift height mm 166 166 1331 1686 166
Lift height mm 3000
（2-Stage Mast） 		3600
（2-Stage Mast） 		3600
（3-Stage Full Free Mast ） 		4500
（3-Stage Full Free Mast ） 		3000
（2-Stage Mast）
Load capacity at the max. lifting height (mm) kg 1300 1100 1100 750 1400
Max. mast height (extended) mm 3408 4008 4024 5024 3408
Overall height (with handle mm 870/1200 870/1200 870/1200 870/1200 870/1200
Lowered fork height mm 86 86 86 86 86
Overall length mm 2022 2022 2022 2022 2022
Length to fork face mm 872 872 872 872 872
Overall width mm 795 795 795 795 795
Fork dimensions s/e/l (mm) 60/180/1150 60/180/1150 60/180/1150 60/180/1150 60/180/1150
Width of forks mm 570/695 570/695 570/695 570/695 570/695
Min. ground clearance mm 26 26 26 26 26
Aisle width with pallet 1000 x 1200 across forks mm 2435 2435 2435 2435 2435
Aisle width with pallet 800 x 1200 along forks mm 2412 2412 2412 2412 2412
Min. turning radius mm 1550 1550 1550 1550 1550
Travel speed, laden/unladen km/h 4.0/4.2 4.0/4.2 4.0/4.2 4.0/4.2 4.0/4.2
Lifting speed, with/without load mm/s 80/210 80/210 80/210 80/210 80/210
Lowering speed, with/without load mm/s 152/160 152/160 152/160 152/160 152/160
Maximum climbing ability, with/without load % 6/8 6/8 6/8 6/8 6/8
Service brake Electromagnetic braking Electromagnetic braking Electromagnetic braking Electromagnetic braking Electromagnetic braking
Drive motor, 60 minute rating kW 1.5 1.5 1.5 1.5 1.5
Lift motor rating at S3 15% kW 3.0 3.0 3.0 3.0 3.0
Battery according to DIN 43531/35/36 A, B, C, no no no no no no
Battery voltage/ capacity V/Ah 24/210 24/210 24/210 24/210 24/210
Battery weight (± 5%) kg 195 195 195 195 195
Type of drive control CURTIS AC CURTIS AC CURTIS AC CURTIS AC CURTIS AC
Noise level at operator's ear dB(A) 70 70 70 70 70
Steering type Mechanical steering Mechanical steering Mechanical steering Mechanical steering Mechanical steering
